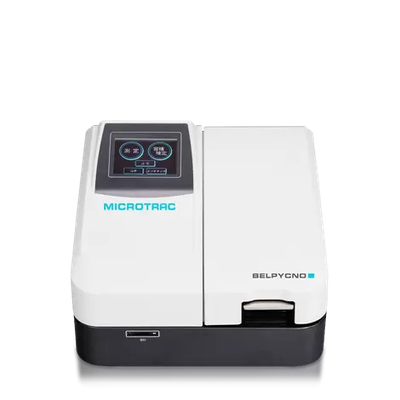

Microtrac - Model BELPYCNO -Density Analyzer
The BELPYCNO offers high-resolution pressure measurement, variable cell volumes, greaseless, and one-touch sample cell cap. These features ensure high accuracy of the measurement result and easy operation.
Most popular related searches
inert gas monitoring
pressure monitoring
gas monitoring
sample temperature
electronic balance
pressure gauge
bathing water
gas sampling method
gas pressure monitoring
thermostat bath
- Highly precise measurement of the sample volumes thanks to variable cell volumes
- Sample cell cap without grease
- Convenient one-hand operation via touch screen
Typical Applications
Used in various fields such as: battery materials, catalysts, fibers, polymer materials, chemicals, cosmetics, fuel cells , cement, pigments, ceramics, magnetic material, semi-conductor (CMP), separation membrane, ...
- Label printer for result output
- Sample weight acquisition from electronic balance
- Thermostatic water bath to maintain the sample temperature
- Measurement principle: Gas displacement method
- Sample cell volume: 10 cm3, 3.5 cm3, 1 cm3
- Measurement accuracy: 0.03% of F.S. +0.03% of reading
- Repeatability: 0.02% of F.S.
- Pretreatment: Gas purge, flow, vacuum (option)
- Pretreatment pressure: 0-145kPa (Gauge)
- Applicable gas: He, N2, inert gas
- Measurement pressure: 145kPa (Gauge)
- Repetition times of measurement: Maximum 100 times
- Mean number of measurement: Maximum 10 times
- Measurement temperature range: 15-35°C, water bath: 15-50°C (option)
- Calibration method: Automatic calibration with calibration sphere
- Interface: Input: RS232C (communication with printer)
- Output: RS232C (communication with electric balance)
- Dimensions (W x H x D): 270 x 170 x 300 mm
- Weight: 8 kg
- Utility - Gas: He, N2, inert gases: 150kPa (G)
- Utility - Joint: 1/8" Swagelok connection
- Utility - Power: AC100~120V/200-240 V / 200 W, 50 / 60 Hz
- CE certified: Yes
