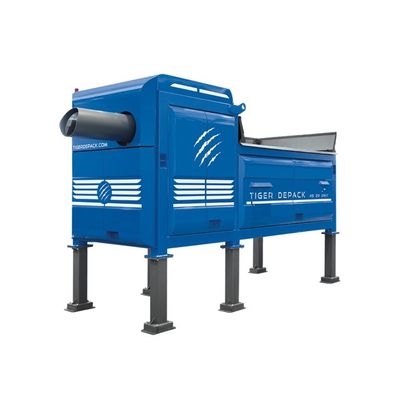

Tiger Depack - Model HS 20 -Depackaging Packaged Unit for Heavy Workloads
Created to handle increased processing capacities, applicable in the fields of depackaging and recovery where large production quantities are required. This is the largest and most powerful machine in the Tiger Depack range.
Most popular related searches
Engine power: 90 kW
Capacity: 20 t/h
- L = 7550 mm
- W = 2500 mm
- H = 4160 mm
Dimensions in mm
- Hopper loading height: 3200 mm
- Hopper loading width: 3500 mm
- Plastic discharge height: 3000 mm
Dimensions in mm
- Max Length: 7550 mm
- Max Width: 2500 mm
- Max Frame Height: 2960 mm
- Max Height: 4160 mm
- External Length of Plastic Extractor: 1100 mm
- Frame Length: 6450 mm
- Height of Standard Legs: 1200 mm
- Hopper: Standard hopper AISI 304
- Legs: Standard Leg height: 1200 mm
- Separation: Patented vertical separation block
- Plastic Extraction: Dry fraction extraction screw
- Engines
- ABB engine for the shaft: 90 kW
- Engine with gearmotor for feeding hopper: 11 kW
- Engine with gearmotor for extraction screw: 5,5 kW
- Liquid
- Double water input line: process water line and washing line
- Solenoid valve for the regulation of the incoming water flow
- Liter count
- Electrical and Software Part
- Control panel with touchscreen
- Software
- Soft Starter
- Frequency converter
- Electric cabinet
- Rotation sensor for rotor
Specifications subject to technical changes. Specifications are approximate, illustrations and descriptions may include options that are not part of the standard equipment.
