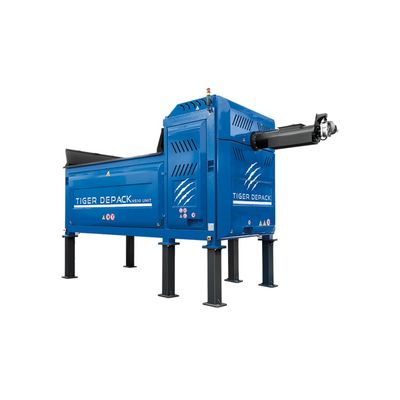

Tiger Depack - Model HS 10 -Depackaging Packaged Versatile Machine
The most versatile. Is Tiger depack’s spearhead product. It is the base machine which in suitable for meeting a variety of requirements as a result of its size and productivity.
Most popular related searches
Engine power: 55 kW
Capacity: 10 t/h
- L = 7400 mm
- W = 2500 mm
- H = 4160 mm
Dimensions in mm
- Hopper loading height: 3200 mm
- Hopper loading width: 3500 mm
- Plastic discharge height: 3150 mm
Dimensions in mm
- Max Length: 7400 mm
- Max Width: 2500 mm
- Max Frame Height: 2960 mm
- Max Height: 4160 mm
- External Length of Plastic Extractor: 1600 mm
- Frame Length: 5800 mm
- Height of Standard Legs: 1200 mm
- Hopper Standard hopper AISI 304
- Legs: Standard Leg height: 1200 mm
- Separation: Patented vertical separation block
- Plastic Extraction: Dry fraction extraction screw
- Engines
- ABB engine for the shaft: 55 kW
- Engine with gearmotor for feeding hopper: 5,5 kW
- Engine with gearmotor for extraction screw: 3 kW
- Liquid
- Double water input line: process water line and washing line
- Solenoid valve for the regulation of the incoming water flow
- Liter count
- Electrical and Software Part
- Control panel with touchscreen
- Software
- Soft Starter
- Frequency converter
- Electric cabinet
- Rotation sensor for rotor
Specifications subject to technical changes. Specifications are approximate, illustrations and descriptions may include options that are not part of the standard equipment.
