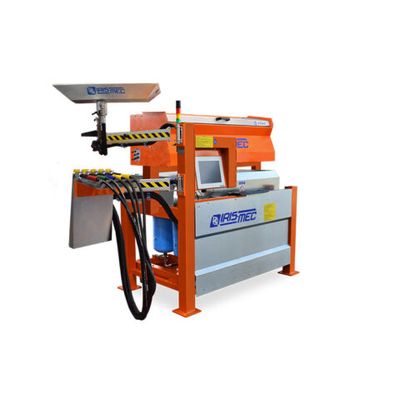

Iris-Mec - Model IBP -Depollution Unit With Fluids Weighing System
Complete depollution station with fluid recovery system, load cells and tanks supervised by a PC provided with a specific software. Depollution station complete with all the equipment for fluids, oils and fuel recovery, is able to weigh the liquids sucked out during the depollution operations for the car at the end of the life (ELV). During the suction phase, the liquids are extracted and pre-stored in tanks equipped with load cells connected to a software that detects the quantity of liquids taken for each vehicle. Thanks to the weighing system ,it will be easier and safer to trace the quantity of fluids that will be stored.
Thanks to the weighing system ,it will be easier and safer to trace the quantity of fluids that will be stored.
Optional equipment on request:
- PFT V: Fuel tanks drill with remote control and Visual;
- PFT Strong:Fuel tanks drill with remote control;
- Ad Blue suction kit;
IBP:
- Gearbox oil: 50 l/min - 11 UK gal/min Air pump
- Hydraulic oil: 50 l/min - 11 UK gal/min Air pump
- Brakes oil: 50 l/min - 11 UK gal/min Air pump
- Oil drainage: 50 l/min - 11 UK gal/min Air pump
- Windscreen-wiper water: 50 l/min - 11 UK gal/min Air pump
- Radiator’s water: 50 l/min - 11 UK gal/min Air pump
- N° cycle-hour: 5/8
- Pressure: 6 Bar
- Max flow: 50 l/min - 11 UK gal/min
- Pneumatic console:
- Capacity: 2 x 90lt / 3 x 50lt / 1 x 20lt - 2 x 20 UK gal / 3 x 11 UK gal / 1 x 5 UK gal
- Weight: 1250 Kg - 2756 Lbs
- Overall dimensions: 2200 x 1200 mm h. 3900 mm - 87 x 48 in h. 154 In
IBP Optionals
- PFT/PFT MONO/PFT-V Puncher
- PFT-Strong Puncher
