- Kexin - Model DR11 - Depth Control One ...
Most popular related searches
- No. of Spindle:1 :
- Spindle Speed:60k rpm / min :
- Processing area of each axis:580mm×730mm :
- XYZ axial movement stroke:600mm×825mm×55mm :
- Number of tools per axis:66 pcs :
- Routing diameter:φ0.6-φ3.175mm :
- X Y Z axis all use high precision Renishaw linear scale
- Tool broken detection
- Depth control precision ±0.05mm
- Z axis independent control
- CCD cameras
- Spindle reverse milling function

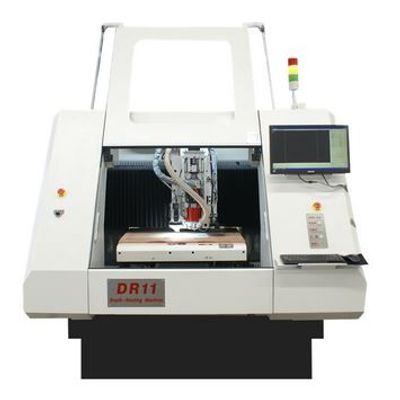

Model Depth Control PCB CNC Router_DR11
No. of Z axis 1
No. of Spindle 1
Spindle Speed 60k rpm / min
Processing area of each axis 580mm×730mm
XYZ axial movement stroke 600mm×825mm×55mm
Number of tools per axis 66 pcs
Drilling diameter φ0.5-φ6.35mm
Milling diameter φ0.6-φ3.175mm
XY Axial max. movement speed 28m/min
Z Axial max. movement speed 25m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.01mm
Repeatability Accuracy ±0.005mm
Routing precision ±0.05mm
Depth control precision ±0.05mm
Power requirements 3P/380V/50Hz (±5%); 3KW
Compressed air requirement 300L/min
Cooling water requirement 18?-25?
Environmental temperature 20?-25?
Ambient humidity 50%-75%
Noise ≤75dBA
Machine Size 1.82m×1.89m×1.60m(L×W×H)
Machine Weight 2500kg
No. of Z axis 1
No. of Spindle 1
Spindle Speed 60k rpm / min
Processing area of each axis 580mm×730mm
XYZ axial movement stroke 600mm×825mm×55mm
Number of tools per axis 66 pcs
Drilling diameter φ0.5-φ6.35mm
Milling diameter φ0.6-φ3.175mm
XY Axial max. movement speed 28m/min
Z Axial max. movement speed 25m/min
System resolution ratio 0.001mm
Positioning Accuracy ±0.01mm
Repeatability Accuracy ±0.005mm
Routing precision ±0.05mm
Depth control precision ±0.05mm
Power requirements 3P/380V/50Hz (±5%); 3KW
Compressed air requirement 300L/min
Cooling water requirement 18?-25?
Environmental temperature 20?-25?
Ambient humidity 50%-75%
Noise ≤75dBA
Machine Size 1.82m×1.89m×1.60m(L×W×H)
Machine Weight 2500kg
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
