DesenModel PE -Jaw Crusher

SHARE

Jaw crusher is suitable for primary and secondary crushing rocks with compressive strength of 320 MPa. It widely used in mining, metallurgy, construction, highway, railway, chemistry industry,ect. The Jaw crusher of large and medium-size are the key products of our company. We take the leading place in designing and producing large Jaw Crushers in China. All models are available according to your different requirements.

Most popular related searches

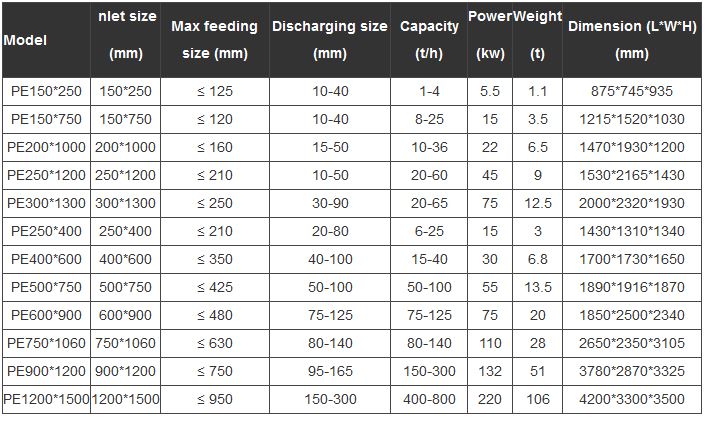

  • Max Feeding size: 950 mm
  • Weight: 1-110 t
  • Power: 5.5-220 kw
  • Capacity: 5-500 tph

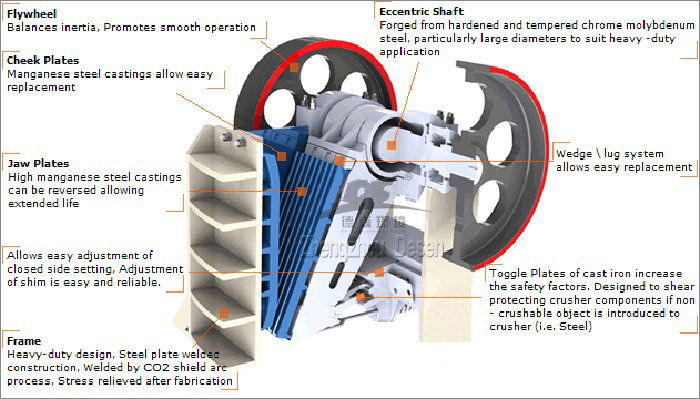

Operating principle of  Jaw Crusher:

The electric motor drives the eccentric shaft by belt pulley to make moving jaw toothed plate move upward and downward, so as to push the moving jaw toothed plate to the fixed jaw toothed plate, to crush the material or splitting the material by doing reciprocating motion of approaching and leaving.
