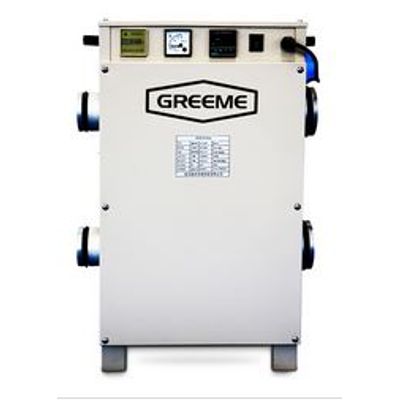

Greeme - Model GMR05C -Desiccant Rotor Dehumidifier

• Dehumidify capacity: 0.5kg/h
• Applied area: 120-200㎡
• Dimension: 480*310*360 (mm)

• High-quality sheet metal housing
• Swedish Proflute silica-gel rotor, washable and efficient; other famous brand electrical components
• Slim and light body, maximum energy saving
• International standard interface of all the external air ducts, easy to disassemble and connect
• SCR equipped in regenerative heat device
• Overcurrent and overload protection, high-temperature protection, remote alarming model help the long-distance control
• Delay protection of the regenerative heater when power off
• Customized remote control is accepted to monitor the humidity

• Rated Process Air Flow m³/h 100
• Regenerated Air Flow m³/h 40
• Noise dB ≤45
• Dehumidify Capacity kg/h 0.5
• Test Conditions T=20℃，RH=60%
• Reactivation Heating Temperature ℃ 120±10
• Maximum Power Rating kW 0.75
• Operating Power Rating kW 0.6
• Current Rating A 3.5
• Applied Temperature ℃ -20℃~+60℃
• Dia of Air Inlet mm 80
• Dia of Air Outlet mm 40
• Voltage V/Hz 220V /50Hz
• Body Size mm 480*310*360
• Net Weight mm 20kg

Desiccant Rotor dehumidifiers remove the humid the air and provide the relative dry air by a rotating desiccant silica-gel wheel, which is continuously re-dried again. In this series, the most component is the desiccant rotor. It is formed as honeycomb, usually making of silica gel or molecular. When the process air passes into the 3/4 flutes of the wheel, it is absorbed by the desiccant. At the same time, a heated air stream (normally 100~140℃), called the reactivation air, pass through the 1/4 flutes, warms the desiccant by evaporating the moisture within. Thus, the desiccant rotor recovers the dehumidification capability.
