ESI - Model EDX6600D -Desk-top RoHS XRF Compliance Analyzer
The RoHS Directive is an EU Legal Directive for environmental regulations concerning the Restriction of Use of Hazardous Substances. The RoHS Directive is an EU Legal Directive for environmental regulations concerning the Restriction of Use of Hazardous Substances. The Directive requires the removal of six hazardous substances from electric and electronic equipment (Pb, Cd, Cr, Hg, Br compounds).
RoHS restricts the use of the following 6 substances:
- Lead
- Mercury
- Cadmium
- Chromium VI (Also known as hexavalent chromium)
- PBB
PBDE (PBB and PBDE are flame retardants used in some plastics)
Widely used in toy safety testing, electrical and electrical and RoHS testing. After the implementation of the EU Toy Directive, it quickly became a powerful guarantee for toy manufacturers to carry out toy safety testing. Production of materials for electronic components and components; third-party evaluation of electronic components and raw material suppliers; testing and verification of packaging materials; testing and verification of hazardous substances in various batteries; various toys, stationery, children`s products and gifts Testing; unobstructed, unrestricted space testing of large volume parts; precise positioning of fine parts to eliminate interference; non-destructive testing of valuables without any damage to the item.
- (RoHS, WEEE, ELV compliant)
- Hazardous material(Cr, Br, Cd, Hg, Pb, Cl, Sb, Sn, S) Screening equipment
- Plating analysis automobile parts, Electronic circuit board(PCB), Such as a capacitor
- Analysis of single-layer, Multi-layer, Alloy plating
- Thickness with Composition Ratio can be measure on time in alloy plating
- Plating thickness measurement special, ENEPIG, Pd-Ni, Rh etc.
- Plating analysis automobile parts, Electronic circuit board(PCB), Such as a capacitor
- Analysis of single-layer, Multi-layer, Alloy plating
- Thickness with Composition Ratio can be measure on time in alloy plating
- Film thickness measurement of multilayer thin films (up to 5 Layer)
- Convenient stage control
- Multi-point measurement possible
- RoHS Screening
- Remote Support by Online

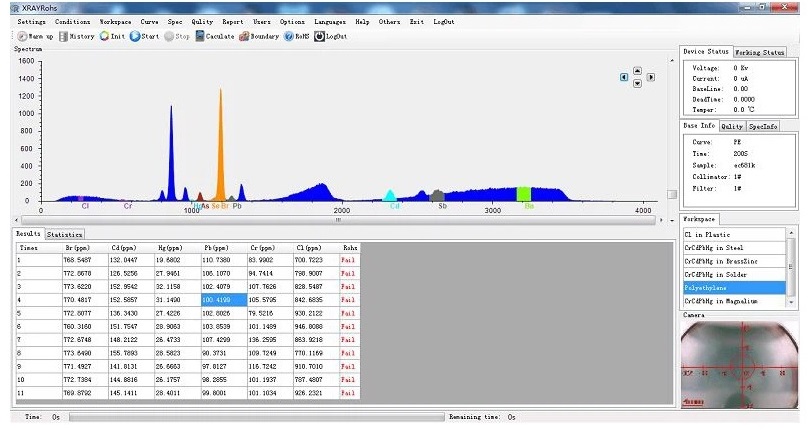

- Functions: RoHS Analysis, Full Element Analysis and Plating Thickness Analysis.
- It can conduct a video observation on the placement of the samples.
- It can analyze dozens of elements simultaneously and it will only take 1 to 3 minutes.
- It can conduct qualitative analysis automatically and report accurately.
- It can initialize and calibrate the instrument automatically.
- It has several analysis methods of spectral fitting.
- Dimensions: 550mm*525mm*350mm
- Weight: 45Kg
- Power Requirement: Provided with 100 VAC to 240 VAC, 50 Hz to 60 Hz, 150 watts power supply

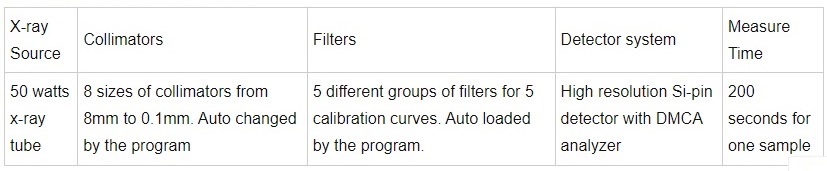

- Anode: Rh or Ag
- Detector: Amptek Si-pin
- Environmental Temp Range: -10 °C to 50 °C (14 °F to 122 °F)
- Camera and Collimator: Integrated with measurement geometry; small-spot collimator; selectable diameter sizes depending on sample size
- Element Suite standard sample(ERM standard): Pb, Cr, Hg, Br, Cd, Cl, As, Ba, Sb
- RoHS / WEEE / ELV Test
- Automatic correction function(Bulk Sample Thickness, Matrix Effect)
- Simple calibration using Wizard
- Cr, Pb, Hg, Br, Cd, Cl, As, Sb Qualitative
- Quantitative analysis with co-exist element
- PDF, EXCEL save function
ESI is committed to working with our customers and to support their instruments and maintenance requirements. We build some of the highest quality instruments for element analysis markets; however, even the best instruments can have a problem from time to time. Our dedicated service staff provides high quality service that ensures maximum performance from every instrument.
Our support experts are available to provide on-site and remote diagnostics and repairs
