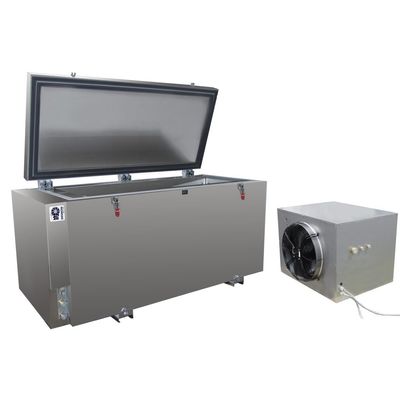

Desmon - Model DVTSS -Ultra Low Temperature (ULT) Horizontal Freezer
Ultra low temperature (ULT) horizontal freezer with autonomous refrigeration (ACS) designed for the storage and transport of vaccines or drugs that require temperatures down to -75 ° C. The operating principle is based on the ability of the system to accumulate the thermal energy necessary for autonomous operation (therefore even in the absence of electricity).The innovation consists in having obtained a uniform temperature distribution with verified gradients of the order of +/- 1 ° C, so as to guarantee the vaccines optimal conservation (without temperature changes) even during transport.
- The use of DCV Technology (Vacuum Insulated Panels combined with cyclopentane expanded polyurethane) allows to reach very low thermal conductivity values, which guarantees a reduction in thermal dispersion compared to normal insulators to the advantage of energy saving and autonomy of the refrigerator. without the use of electricity for a variable period of time depending on the installed thermal capacity.
Ultra freezer -75 ° C designed for the transport and storage of Covid-19 vaccines that require extreme temperatures for proper storage.
Designed to continue generating cold, even in the absence of electricity.
WELL ULTRA FREEZER -75 ° C
Use: Storage and conservation of laboratory materials and vaccines
Typology: ULT Horizontal
Capacity: 404 lt
Temperature: down to -75 ° c
Internal I External use: For indoor use
CONTROL PANEL
Control Panel: Electronic card with microprocessor
Switch: On I Off
Probe alarm: Acoustic
Temperature alarm: Acoustic and Visual
Power Alarm: Acoustic
Buffer battery alarm: Acoustic and Visual
STRUCTURE
Internal structure: Stainless steel
External Structure: Stainless steel
Thermal Insulation - Sp.mm: High density CFC Free - Thickness 120mm
Through hole: Yup
Door lock: Yup
Handling: Eyebolts
Internal dimensions mm (LxWxH): 1520x400x865
External Dim. Mm (LxWxH): 1940x1 000x942
Packing dimension mm (LxWxH): 2040x1100x1092
Net / Gross Weight KG: 215/235
REFILL CONDENSING UNIT
Maximum Absorbed Power: 2.5 KW
Voltage: 400V I 3 I 50Hz
Refrigerant type: Bland
Surrender: -75 ° C
Dimensions mm (LxWxH): 1050x800x720
Packing Dim. Mm (LxWxH): 1100x900x1000
Net / Gross weight: 200/220
