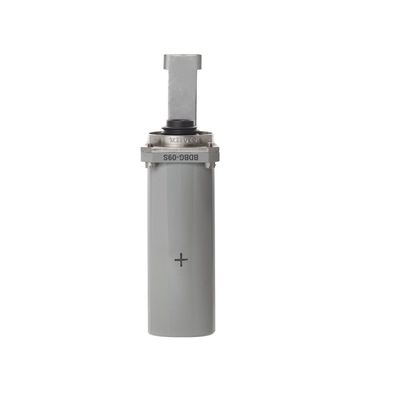

Ecotest - Model BDBG-09S -Detecting Unit of Gamma Radiation

BDBG-09S is used for mobile laboratories, as a part of data panels and automated radiation monitoring systems.

It is produced using a highly sensitive scintillator CsI (Tl) with silicon photomultiplier and a Geiger-Muller counter. If the customer chooses so, BDBG-09S can be made of duralumin or stainless steel. A special version of BDBG-09SW detecting unit with a waterproof housing IP68 has been developed for use in waters basins or artificial reservoirs.

BDBG-09S detecting unit can be used as a part of systems instead of BDBG-09 detecting unit for measurement of dose equivalent rate of gamma radiation and temperature without software change.

• Highly sensitive scintillator CsI (Tl) with silicon photomultiplier

• Availability of amplitude spectrum (1024 channels)

• Ingress protection rating IP67

• An option of a waterproof housing IP68

• Complies with IEC 61000-4-2:2008, IEC 61000-4-3:2007, IEC 61000-4-4:2008 standards

• Measurement of ambient dose equivalent rate (DER) of gamma radiation

• Highly sensitive scintillation CsI (Tl) detector with a photomultiplier for measurements in the range within 0.01 μSv/h to 50 μSv/h (spectrum-dose function)
• Energy-compensated Geiger-Muller counter for measurements in the range within 50 μSv/h to 1 Sv/h
• Data exchange between the detecting unit and the data display system through RS-485 interface
• Indication of the statistical measurement error
• Constant self-testing

• detecting unit of gamma radiation
• corbel
• operating manual (one copy per batch)

• logbook

• package

• technological kit for calibration and testing of the detecting units (at request)

• connecting cable (at request)

• mounting parts kit (to be ordered before the production of the connecting cable)
