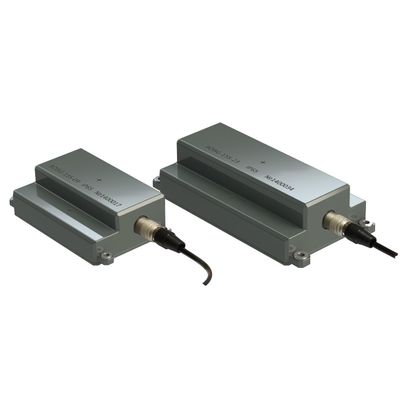

Ecotest - Model BDBG-15S -Detecting Unit of Gamma Radiation

BDBG-15S is designed to measure ambient dose equivalent rate of gamma radiation in a wide range of values. Suitable for unmanned aerial vehicles, mobile robotic devices, and automated systems of radiation monitoring.

BDBG-15S is available in three modifications: BDBG-15S-09, BDBG-15S-23, and BDBG-15S-90, which differ in size and sensitivity of scintillation detector.

• The best choice for unmanned aerial vehicles and mobile robotic devices

• Highly-sensitive scintillation detector

• Ingress protection rating IP65

• Measurement of ambient dose equivalent rate (DER) of gamma radiation

• Scintillation CsI (Tl) detector with a photomultiplier for measurements in the 0.01 μSv/h to 50 μSv/h range (spectrum-dose function):

– 9 cm3 for BDBG-15S-09

– 23 cm3 for BDBG-15S-23

– 90 cm3 for BDBG-15S-90

• Energy-compensated Geiger-Muller counter for measurements in the 50 μSv/h to 1 Sv/h range (except BDBG-15S-90)
• High sensitivity regardless of minimum weight and dimensions

• Ability to extend a measurement range up to 5 Sv/h (at request)

• Availability of amplitude spectrum (1 024 channels)

• High mechanical immunity

• No microphone effect

• detecting unit of gamma radiation
• socket with plug (for connecting cable)
• operating manual
• package
