Automess - Model 6150AD 19 GM -Detector for Beta or Gamma

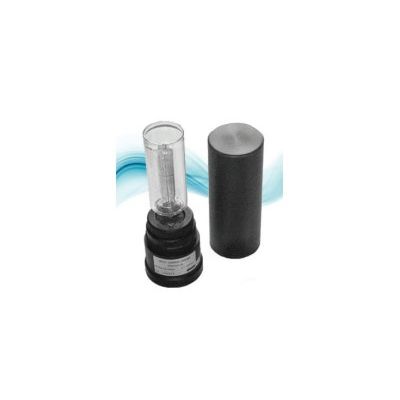

Cup-like GM detector for beta or gamma contamination in liquids. Operates with the 6150AD5/6 rate meter.

Most popular related searches

Detector: Cup-type counting tube for liquids, capacity 100 ml, Gamma sensitivity for 137Cs radiation free in air approx. 22,000 pulses per µSv
Tube window or tube wall resectively: Sensitive tube: Length 60mm
Material: Glass, wall thickness approx. 25 mg/cm2
Range: 0.01 S-1 to 10 kS-1
Temperature range: -30°C to +50°C (137Cs gamma radiation free in air)
Humidity and pressure: 0 - 95% relative humidity, Atmospheric pressure 60 - 130 kPa (600 - 1300 mbar)
Power Supply: 4.75 V out of 6150AD
Dimensions: 70 (diameter) x 205 (length) mm
Weight: ~ 550 g including protective cover
Probe cable: Max. 5 m
