Detroit RotoGrate - Stoker

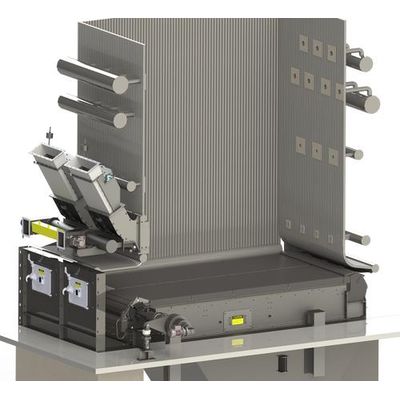

The Detroit® RotoGrate Stoker is a continuous ash discharge, traveling grate, spreader stoker that is perfect for a broad range of applications. It is recognized worldwide for its efficiency in generating steam and power.
Most popular related searches
combustion air
combustive air
flue gas
temperature monitoring
flue gas combustion
coal ash
furnace
thermocouple
emissions regulations
waste biomass
Suited for Many Applications:
- Biomass and waste fuels
- Low ash poultry litter to high ash coal
- Forward-moving, traveling grate
- Continuously discharges ash
- Heat-resistance grates available in several materials to suit specific requirements
- Unique, hinged bar design permits bars to open at the lower portion of the catenary to discharge ash siftings
- Facilitates air flow to the fuel bed
- Catenary design provides automatic take-up or tensioning of grate chains to prevent jamming
- Automatic air seals allow accurate control of air flow to the grate surface
- High pressure overfire/secondary air system provides effective staged combustion and thorough mixing of flue gases and combustion air high in the furnace which allows the control of emissions
- Thermocouple assemblies allow monitoring of grate temperature
