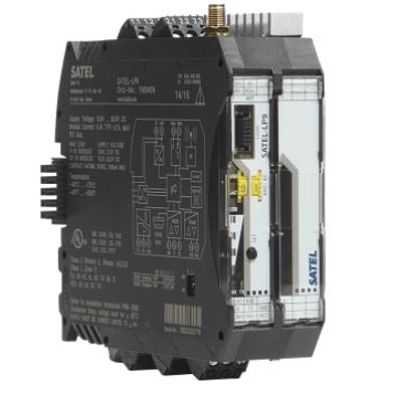

Satel Iberia - Model SATEL-LP9 -Device for Simple I/O and Serial Communications
The SATEL-LP product family is made for simple I/O and serial communications. SATEL-LP provides a cost-effective wireless solution to locations where it costs too much or it is impossible to run a wire. All SATEL-LP modules are DIN rail mountable. The communications over the air interface is secured with a 128-bit AES encryption and authentication.
- License-free 900 MHz
- Designed for North America, South America and Canada
- For short-range, non-line-of-sight applications or for long-range applications of up to 30 kilometers
- Easy, software-free configuration
- Up to 32 I/O modules can be attached to a single radio module via T-BUS
- FHSS (Frequency Hopping Spread Spectrum)
- License-free ISM (Industrial, Scientific and Medical) band
- Mesh networks of up to 250 devices
The system consists of data transfer and expansion modules. The data transceiver modules are used for serial data transfer and expansion modules for I/O signals. I/O signals can also be connected directly to Modbus protocol devices with transceiver modules through RS-232 and RS-485 interfaces.
With SATEL-LP system it is easy and simple to create point-to-point, point-to-multipoint or large mesh networks up to 250 nodes. The commissioning can be done without any programming via the thumb wheel – a wireless connection is established automatically. Through AES encryption, frequency hopping spread spectrum, and coexistence management the system reliability is extremely high and data transfer is secured 24/7.
- SATEL-LP9 (YM0409)
