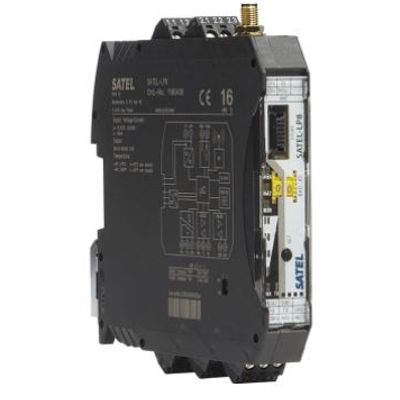

Satel Iberia - Model SATEL-LP8 -Device for Simple I/O and Serial Communications
The SATEL-LP product family is designed for simple I/O and serial communications. With software-free radio setup, SATEL-LP provides a cost-effective wireless solution where it is too expensive or impossible to run a wire. All SATEL-LP modules are DIN rail mountable. The communications over the air interface is secured with a 128-bit AES encryption and authentication.
- Licence-free 869 MHz
- Designed to be used in Europe
- For short- or middle-range applications of up to 20 kilometers
- Easy, software-free configuration
- Up to 32 I/O modules can be attached to a single radio module via T-BUS
- FHSS (Frequency Hopping Spread Spectrum) (Depends on the topology and baud rate)
- Mesh networks of up to 99 devices
- IECEx Certificate, can be used in potentially explosive environments
The system consists of data transfer and expansion modules. The data transceiver modules are used for serial data transfer and expansion modules for I/O signals. I/O signals can also be connected directly to Modbus protocol devices with transceiver modules through RS-232 and RS-485 interfaces.
With SATEL-LP system it is easy and simple to create point-to-point, point-to-multipoint or large mesh networks up to 250 nodes. The commissioning can be done without any programming via the thumb wheel – a wireless connection is established automatically. Through AES encryption, frequency hopping spread spectrum, and coexistence management the system reliability is extremely high and data transfer is secured 24/7.
SATEL-LP 8 has an IECEx Certificate, which means that it can be used in potentially explosive environments. IECEx is very similar to European ATEX system; both use the same standards (e.g. EN-IEC 60079-0). Products with IECEx Certificate are accepted in several countries globally. Contact us for more information.
- SATEL-LP8 (YM0408)
