EK Engineering - Model TDPT -Dew Point Temperature Transmitter

FromEK Engineering

SHARE

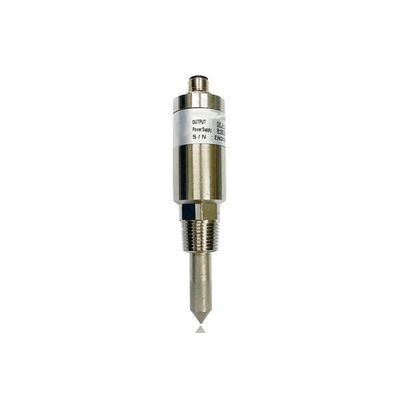

TDPT is high end air dew point temperature transmitter for high pressure air applications for industrial and commercial applications like air compressors, dryers etc. With non-corrosive stainless steel sensor probe, temperature compensated measurement, TDPT is ideal products for demanding applications where operating pressure is very high. With analog output and serial interface Modbus, it can be easily integrated with any BMS or SCADA systems.

Most popular related searches

temperature transmitter

dew point transmitter

compressed air system

dew point monitoring

industrial drying

process monitoring

stainless steel temperature probe

air storage tank

High accuracy
Long-term performance stability
With temperature compensation and linear adjustment.
Industrial grade sensor with non- condensing bearable pressure up to 16 bar
Linear, proportional analog output: 0-1V/0-5V/1-5V/0-10V/2-10V/0-20mA/4-20mA
Standard MODBUS RTU protocol, RS-485 communication interface
Available in many standard connection sizes for different environment
High pressure, low humidity. Dew point measuring range: -100 ~ +60
Free programmable software which can adjust dew point range and provide more physical parameter values – dew point, frost point, absolute humidity etc

Compressed air system / freezer / adsorption machine
Plastic Dryer / industrial drying process
Paper / Chemical Process monitoring
Underground mines and bunkers
Air tanks, storage systems
