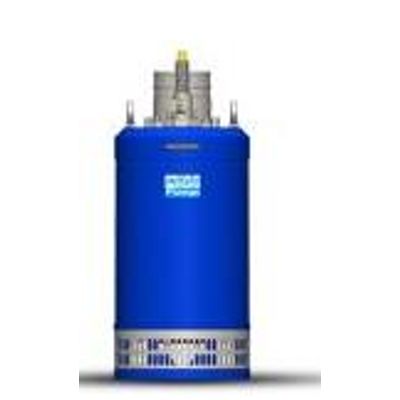

Mody - Model G-700 Series (16HP) -Dewatering Submersible Pump

Discharge Connection – (inches): 6″, 4″. Rated Power – (HP/kW):16/12, 16/12.

Most popular related searches

Speed – (rpm), 3400, 3400
Rated Current @ 230v (3 Ph.), 44A, 44A
Rated Current at 460v (3 Ph.), 22A, 22A
Rated Current at 575v (3 Ph.), 17.6A, 17.6A
Solids Passage – (mm, inches), (25.5×5), 1-3/16″ x 3/16″, 10, 3/8″
Submergence – (min, max), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m)
Height – (mm, inches), 845, 33.25″, 845, 33.25″
Weight – (kg/lbs), 127/280, 140/310

Specifications
