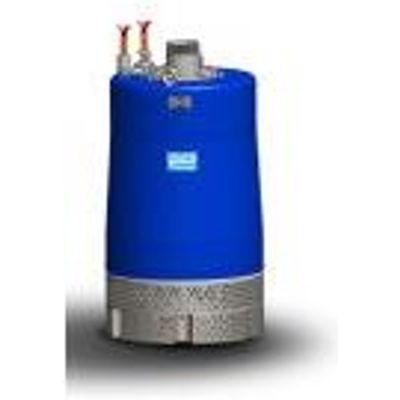

Mody - Model G-1200 Series (90HP) -Dewatering Submersible Pump

Discharge Connection – (inches): 10″, 6″. Rated Power -(HP/kW): 90/67, 90/67. Speed – (rpm): 3400, 3400.

Most popular related searches

Rated Current at 460v (3 Ph.), 105A, 105A
Rated Current at 575v (3 Ph.), 84A, 84A
Solids Passage – (mm, inches), 15mm x 45mm, 15mm x 45mm
Submergence – (min, max), Min – 16″ (400mm), Max – 65′(20m), Min – 16″ (400mm), Max – 65′(20m)
Height – (mm, inches), 1538/60.55″, 1538/60.55″
Weight – (kg/lbs), 600/1334, 600/1334

Specifications
