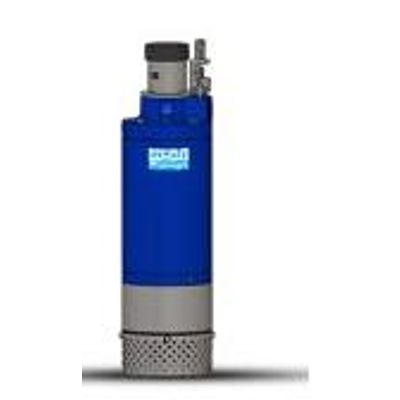

Mody - Model M-200 Series (3-5HP) -Dewatering Submersible Pump

Discharge Connection – (inches), 3″, 3″, 3″.

Most popular related searches

Rated Power – (HP/kW), 3/2.2, 3/2.2, 5/3.7
Speed – (rpm), 3400, 3400, 3400
Rated Current @ 115v (1 Ph. ), N/A, N/A, N/A
Rated Current @ 230v (1 Ph.), N/A, 38A, N/A
Rated Current @ 230v (3 Ph.), 9.8A, N/A, 14.2 A
Rated Current at 460v (3 Ph.), 4.9A, N/A, 7.1 A
Rated Current at 575v (3 Ph.), 3.92A, N/A, 5.68A
Solids Passage – (mm, inches), 6, 1/4″, 6, 1/4″, 6, 1/4″
Submergence – (min, max), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m)
Height – (mm, inches), 666.75, 26 1/4″, 724, 28 1/2″, 724, 28 1/2″
Weight – (kg/lbs), 35/77, 40/88, 40/88
