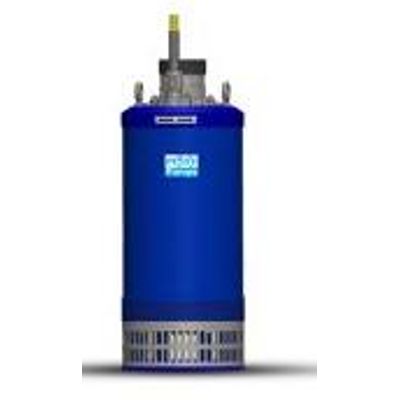

Mody - Model G-500 Series (5-10 HP) - Dewatering Submersible Pump

Discharge Connection (inches): 4″, 4″, 3″, 4″, 3″, 4″, 3″.

Most popular related searches

Rated Power (HP/kW), 5/3.7, 5/3.7, 5/3.7, 7.5/5.5, 7.5/5.5, 10/7.5, 10/7.5
Speed (rpm), 3400, 3400, 3400, 3400, 3400, 3400, 3400
Rated Current @ 230v (3 Ph.), 14.2A, 14.2A, 14.2A, 22A, 22A, 28A, 28A
Rated Current at 460v (3 Ph.), 7.1A, 7.1A, 7.1A, 11A, 11A, 14A, 14A
Rated Current at 575v (3 Ph.), 5.68A, 5.68A, 5.68A, 8.8A, 8.8A, 11.2A, 11.2A
Solids Passage (mm, inches), (25 x 6), 1″ x1/4″, (25 x 6), 1″ x1/4″, 6, 1/4″, (30 x 9.5), 1-3/16″ x 3/8″, 6, 1/4″, (30 x 9.5), 1-3/16″ x 3/8″, 6, 1/4″
Submergence (min, max), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m)
Height (mm, inches), 641.35, 25 1/4″, 641.35, 25 1/4″, 641.35, 25 1/4″, 724, 28 1/2″, 724, 28 1/2″, 749.3, 29 1/2″, 749.3, 29 1/2″
Weight (kg/ lbs), 50/110, 50/110, 52/115, 59/130, 61/135, 64/142, 67/147

Specification
