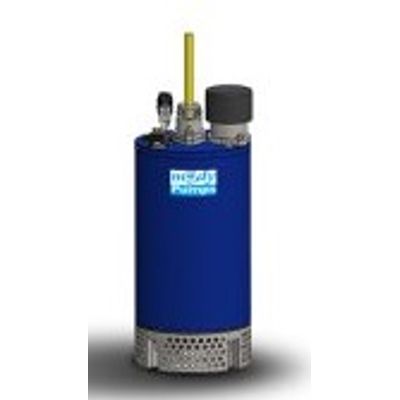

Mody - Model M-100/120 Series (1-2HP) -Dewatering Submersible Pump

Discharge Connection (inches):2″, 2″, 2″, 2″, 2″, 2″, 2″, 2″.

Most popular related searches

Rated Power (HP/kW), 1/1.3, 1/1.3, 1.1/1.5, 1.1/1.5, 1.5/2, 1.5/2, 2/1.5, 2/1.5
Speed (rpm), 3400, 3400, 3400, 3400, 3400, 3400, 3400, 3400
Rated Current @ 115v (1 Ph. ), N/A, 19A, N/A 19A, N/A, N/A, N/A, N/A
Rated Current @ 230v (1 Ph.), N/A 9.5A, N/A 9.5A, N/A, N/A, N/A, 14
Rated Current @ 230v (3 Ph.), N/A, N/A, N/A, N/A, N/A, N/A, 6.8A, N/A
Rated Current at 460v (3 Ph.), 2A, N/A 2.2A, N/A, 3.4A 3.4A, 3.8A, N/A
Rated Current at 575v (3 Ph.), 1.6A, N/A, 1.76A, N/A, 2.72A, 2.72A, 2.72A, N/A
Solids Passage (mm, inches), 6, 1/4″, 6, 1/4″, 6, 1/4″, 6, 1/4″, 6, 1/4″, 6, 1/4″, 6, 1/4″, 6, 1/4″
Submergence (min, max), N/A, N/A, N/A, N/A, N/A, N/A, Min – 5″ (127mm), Max – 50′(15m), Min – 5″ (127mm), Max – 50′(15m)
Height (mm, inches) 419, 16.5″, 425.45, 16.75″, 419, 16.5″, 425.45, 16.75″, 431.8, 17″, 431.8, 17″, 641.35, 25 1/4″, 666.75, 26 1/4″
Weight (kg/lbs), 35/16, 39/18, 35/16, 39/18, 39/18, 39/18, 28/62, 35/77

Specification
