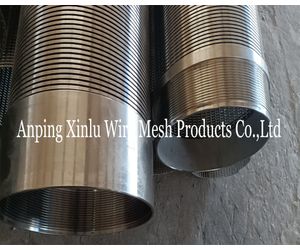

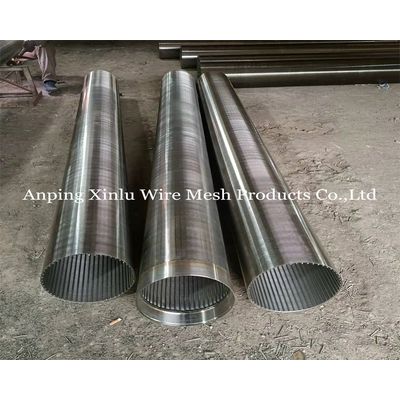

FY-XL - Model 04 Stainless Steel Wedge Wire -Dewatering Water Well Screen
Main specs for water well screen Well Screen material: stainless steel, galvanized low-carbon steel, or custom materials Slot opening size: 0.1mm-15mm Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm Length: 2.9m, 5.85m. The maximum length is 6.05m Connection method: beveled, circumferential welded, threaded connection Technical Specs of Water Well Screen Outside Diameter Inside Diameter Slot Opening Size Percentage of Open Area Length 6inch (168mm) 156mm 0.5, 0.75, 1.0, 1.5 Above 6% 2.9m, 5.8m 8inch (219mm) 203mm 0.5, 0.75, 1.0, 1.5 Above 9% 2.9m, 5.8m 10inch (273mm) 256mm 0.5, 0.75, 1.0, 1.5 Above 9% 2.9m, 5.8m 12inch (325mm) 305mm 0.5, 0.75, 1.0, 1.5 Above 9% 2.9m, 5.8m
water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens
Features of Johnson Wedge Wire Dewatering Well Screen pipe:
integrity at every point of welding.
Tight slot control for consistent flow rates.
Stringent Quality Control measures ensure a quality product.
Weld Rings or Threaded Fittings as per customer requirements.
Multiple wire profile options to suit applications and specification.
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
