- DISTRIBUTED DAQ: KRYPTON DAQ modules were designed for distributed measurements to bring data acquisition closer to sensors. This introduces many advantages opposed to traditional DAQ systems. KRYPTON allows distributing DAQ units down to single channel.

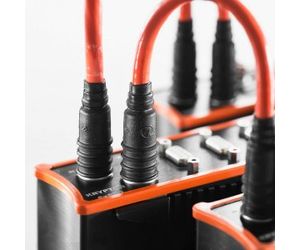

- ETHERCAT DAQ: EtherCAT protocol with 100Mb bus speed is used for data transmission, data synchronization, and power supply. Kryptons are connected with a single cable for data, power, and sync.

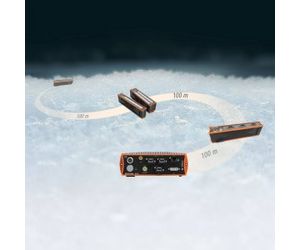

- UP TO 100m BETWEEN UNITS: KRYPTON units can be distributed over the large area with the distances up to 100 meters between DAQ nodes.

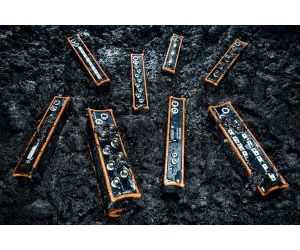

- RUGGED IP67: All KRYPTON modules are rugged with the IP67 degree of protection and ready for testing in extreme weather and harsh environments.
- 1, 3, 4, 8 and 16 CHANNEL UNITS: KRYPTON DAQ modules are available in various configurations spanning from tiny single channel units up to bigger 16-channel units. Instruments can be distributed down to the single channel.
- UP TO 20 kHz/CH SAMPLING RATE: Most KRYPTON channel in the EtherCAT line can achieve sampling rate up to 20 kS/second.
- UNIVERSAL ANALOG INPUTS: Universal analog inputs are available that can accept voltage and full/half/quarter bridge signals natively as well as IEPE, charge, thermocouples, RTD, current, resistance and LVDT signals with the use of DSI adapters.
- SOFTWARE INCLUDED WITH FREE LIFETIME UPGRADES: Easy to use, yet very robust in functionality, award-winning DEWESoft X3 software is included. The software comes with lifetime free upgrades and no hidden costs, bringing you intuitive configuration, smart sensors, advanced storage and analysis capabilities.

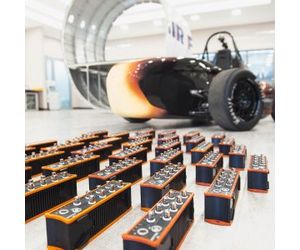

KRYPTON are small, rugged and modular data acquisition modules for field measurements and harsh environment.
Traditional DAQ systems are single boxes with many input channels, which means long and expensive sensor cabling is needed.
KRYPTON takes opposite approach. We kept the same advantages of other Dewesoft DAQ devices (plug and play, sensor auto-detection), but we are bringing DAQ units closer to the origin of data - near the sensors.
That greatly reduces the cost of the sensor cabling, chances of wiring errors and greatly improves the signal quality.
KRYPTON DAQ modules are extremely robust. We machine each one out of aluminium bricks and install industrial grade electronics. Units are then sealed with thermally conductive and electrically isolative rubber. As a final touch we add rubber band around KRYPTON chassis to further protect unit from the shocks. The result is IP67 degree of protection. Units are waterproof, shock proof, and can withstand shocks up to 100G.
KRYPTON can operate in extremely harsh environments and is rated to work in temperature span from -40°C to +85°C.
Extensive testing in our laboratories ensure bulletproof quality and worry-free testing under extreme conditions.

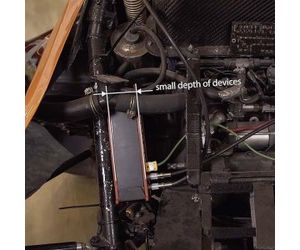

KRYPTON DAQ modules are designed to be as small as possible and very flexible. Their small size allows them to fit perfectly in tight places and can be placed near the sensors. This results in short sensor cables which will not only save cost but also improve the signal quality.
KRYPTON is not just small and rugged but also has quality analog amplifiers for precise signal measurement. An array of different modules are available for almost any sensor:
- STG - Universal differential voltage and Full/Half/Quarter bridge input. Available in 1, 3 and 6 channel configurations. Compatible with DSI adapters.
- TH - Universal isolated thermocouple input module. Accepts all thermocouple types. Available in 8 and 16 channel configurations and as a single channel for high voltage thermocouple measurements.
- RTD - Universal differential PTx temperature, resistance and voltage. Available in 8 and 16 channel configurations.
- LV - Isolative voltage input. Available in 1, 4 and 8 channel configurations.
- ACC - IEPE accelerometer and microphone input unit in 1, 4 and 8 channel configuration
- DI / DO - Digital I/O module. Available in 4xDI, 4xDO, 16xDI, 16xDO or 8xDI/8xDO channel configurations.
- AO - analog output is available in single channel configurations
- CNT - a single channel DEWESoft SUPERCOUNTER® module
KRYPTON DAQ modules are using 100 Mbit datalink based on EtherCAT protocol technology. Fast data bus allows many of the KRYPTON units to be daisy chained together in the single measurement chain. At the end of the chain RJ45 cable is used to plug into Ethernet port of your PC computer or special, more rugged 8-pin LEMO connector to connect to our robust, powerful computers like KRYPTON CPU, SBOX, R2DB or R8.
EtherCAT brings another big advantage - zero configuration. KRYPTON devices do not require any complex IP setup. Simply connect them together into PC and Dewesoft X software will recognize and setup devices automatically.
There is single cable required for data, power, and synchronization which can run up to 100 metrers (300 feet) from module to module connecting amplifiers together.
KRYPTON data acquisition hardware is capable to acquire different signals like voltage, bridge, IEPE, thermocouple, digital, and more. With included Dewesoft X3 software, you can easily acquire data from additional interfaces like GPS, Flexray, Ethernet, Serial, PCM telemetry, and many more.
Even though each data source can have different sampling rates (software selectable for each channel), all data is always perfectly synchronized down to microsecond accuracy. The synchronization between KRYPTON modules run through the same cable as power and data.
KRYPTON DAQ modules can also be combined and synchronized with our fast USB DAQ devices like SIRIUS, MINITAURs or DEWE-43A. For this we have small accessory called EtherCAT Sync Junction. This box will provide clock source for syncronization. External timing source like GPS or IRIG can be connected and used.
KRYPTON One is the latest addition of rugged DAQ modules in the KRYPTON family line. Krypton One are the smallest IP67 DAQ modules in the world. The pocket size allows the modules to be mounted in tight places, right next to the sensors. Units are highly distributable, connected with a single cable for power, data, and synchronization.
KRYPTON ONE data acquisition modules are completely compatible with every other KRYPTON, SIRIUS and other data acquisition instruments from Dewesoft.

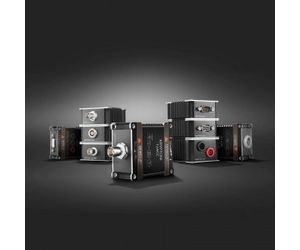

Available KRYPTON ONE modules

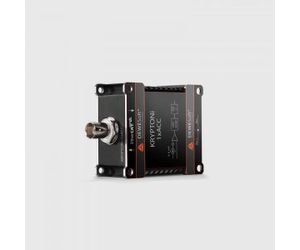

- ACC: isolated IEPE and voltage input
- STG: isolated universal and strain gage input
- LV: isolated universal voltage input
- DI: digital input
- DO: digital output
- AO: analog output
- CNT: counter/encode/digital input
- CAN: CAN bus input
- HV: isolated high-voltage input up to ±1000V
- TH-HV: thermocouple input for high-voltage potentials
Main characteristics of KRYPTON ONE modules
- The fastest KRYPTON: single-channel architecture allows a maximum sample rate of 40 kS/s.
- Isolation: all analog KRYPTON 1 modules are fully isolated.
- Current input: 1xSTG includes internal shunt for two current input ranges (20 mA, 2 mA).
- High current drive: 4xDO is capable of sinking 2A current to drive high loads.
- Easy stacking: modules can be stacked and tightened together with M4 hex key screws.
Entire KRYPTON product line can be used with any third-party EtherCAT master for real-time applications. KRYPTON offers perfect signal conditioning and offers very rugged distributed units that can be used in most demanding real-time applications.
