DEWESoft - Model R1DB/R2DB -Mobile Data Acquisition System

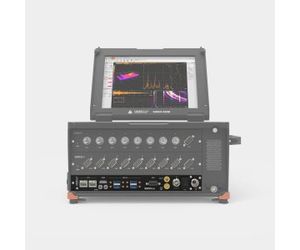

Compact, mobile data acquisition system with a built-in data logger, powerful data processing computer, multi-touch display, and internal batteries for maximum portability.
- HIGH-END SIGNAL CONDITIONING: R1DB/R2DB data acquisition system is built around SIRIUS DAQ technology and features the same versatile and powerful amplifiers for world-leading signal conditioning. See SIRIUS product page for detailed SIRIUS DAQ technology overview.

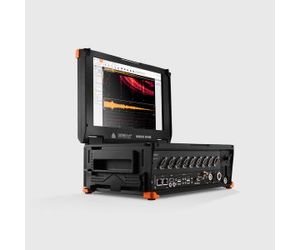

- ALL-IN-ONE INSTRUMENT: R1DB/R2DB instruments are stand-alone DAQ systems with the built-in touchscreen LED display, powerful data processing computer, SSD data logging capabilities, and internal Li-Ion batteries (R1DB/R2DB). A version without battery is also available (R2D).
- UP TO 32 ANALOG INPUTS: Systems can be configured with one (R1DB) or two (R2DB) SIRIUS DAQ slices for the total of 32 analog inputs capable of connecting virtually any sensor.
- UP TO 16 COUNTER/ENCODER INPUTS: Up to 16 counter/encoder or 48 digital input channels, all equipped with our patented SUPERCOUNTER® technology.
- UP TO 2 ISOLATED CAN PORTS: Up to 2 high speed CAN 2.0b channels with 1 Mbit/sec data throughput with additional support for CCP, OBDII, J1939, and CAN output.
- ETHERCAT PORT: DAQ system includes EtherCAT master port with built-in synchronization for easy connection and extension of any of our EtherCAT based DAQ system like KRYPTON DAQ modules.
- ALL INTERFACES: Interfaces for Wireless LAN, dual GLAN, 4x USB 3.0, GPS, HDMI, 2x synchronization are available.
- 100 Hz GPS WITH RTK: Optional 10Hz or 100Hz GPS receiver with additional RTK support can be built right into R1DB/R2DB DAQ system.
- SOFTWARE INCLUDED WITH FREE LIFETIME UPGRADES: Easy to use, yet very robust in functionality, award-winning DEWESoft X3 software is included. The software comes with lifetime free upgrades and no hidden costs, bringing you intuitive configuration, smart sensors, advanced storage and analysis capabilities.
R1DB/R2DB are all-in-one data acquisition systems build around SIRIUS DAQ technology. Both feature the same DualCoreADC® analog inputs with 160 dB dynamic range and acquisition speeds of 200 kHz per channel or optional high speed amplifiers with speeds up to 1 MHz per channel.
R2DB chassis can hold up to two SIRIUS DAQ slices with total of 32 analog channels, 16 counter/encoder channel, 48 digital channels and 2 high speed CAN bus ports. R1DB can hold up to one SIRIUS DAQ slice, that`s half of total R2DB channels. A wide variety of different amplifiers are available for virtually any signal and sensor.
At the heart of R1DB/R2DB DAQ system is a powerful SBOX computer powered by Intel Core i3 CPU with optional upgrade to Intel Core i7. Together with 4 GB of memory and fast internal SSD drive provides enough power for even the most demanding real-time data processing.
The R1DB/R2DB SBOX computer is equipped with all the modern interfaces for connectivity and expansion:
- Network interfaces: 2x GLAN, 1x WLAN.
- USB 3.0: 4x USB 3.0 ports for data acquisition devices like SIRIUS, DEWE-43A, and peripherals like mouse, keyboard, printers and external hard drives.
- EtherCAT master port: for connecting any of our EtherCAT data acquisition devices like KRYPTON or SIRIUS.
- HDMI video: for connecting an external display.
- GPS receiver: optional built-in 10 Hz or 100 Hz GPS receiver with an option to connect external GPS display.

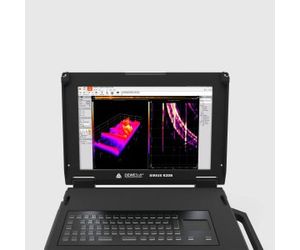

R1DB and R2DB data acquisition systems have integrated high-resolution, high-brightness 12.1-inch multi-touch display with WXGA display. The display provides enough resolution for all your visuals and enough visibility even in the harshest environments. The high-quality display allows wide viewing angles.
Included Dewesoft X3 software is build to be touch-friendly and includes smart visual controls and graphs that allow easy multitouch gesture-based operation.
R1DB have built in 96 Wh Li-Ion batteries while R2DB have built-in 192 Wh Li-Ion batteries for maximum portability.
Batteries are hot-swappable, meaning you can exchange them even during your measurements without the need of shutting the system down and stopping the test.

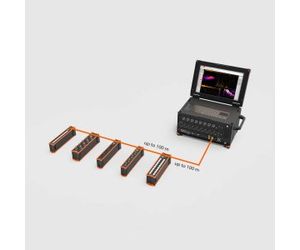

R1DB/R2DB data acquisition systems are equipped with EtherCAT master port which can be used to expand and distribute additional DAQ channels with any of our EtherCAT based units like SIRIUS and/or KRYPTON.
EtherCAT port includes built-in hardware synchronization hub for synchronization of all the connected EtherCAT DAQ channels with internal R1DB/R2DB DAQ channels. Only one cable is needed to daisy chain the units. The single cable runs data, synchronization, and power to all extended EtherCAT devices.
R1DB is smaller, even more compact version of R2DB data acquisition system. It features the same multi-touch LED screen, powerful data processing computer, and SSD data logger with internal hot-swappable batteries for maximum portability.
R1DB can accommodate one SIRIUS DAQ slice. Up to 16 analog inputs, 8 counter/encoder inputs, 24 digital inputs, and 1 high speed CAN input.
SBOX computer inside R1DB/R2DB instruments can be configured with optional 10 Hz or 100 Hz GPS receiver with optional Real-Time Kinematics (RTK) support for the most precise (down to 1cm) position-based test and measurement applications.
GPS and RTK option will transform the R1DB/R2DB system into powerful stand-alone data logger for an advanced position based test and measurement applications like pass-by-noise, vehicle dynamics, brake testing, road load data, ADAS, and more.
For more information about position measurement also see GPS and IMU devices and GPS PRO training course.
