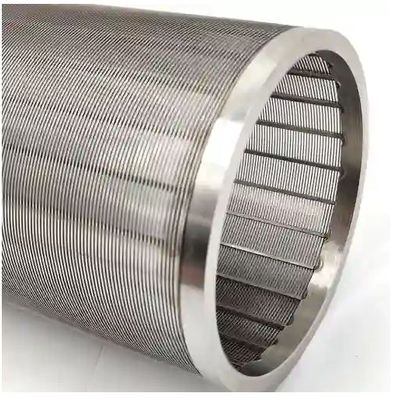

DEZE - Cylindrical Wedge Wire Screens
Cylindrical Wedge Wire Screens are manufactured with V-shaped profiles that are precisely welded to cross support bars. Stainless steel is the preferred material for manufacturing these screens, as it is both strong and corrosion resistant. Our products are available in grades 304,304L, 304HC, 316,316L, 3i6Ti, 321, or we can customize a product to meet your specific needs, cylinder screen is the perfect solution for a wide range of applications, from filtering and straining to drain grates and guards.
- Screens are perfect for a wide range of applications
- Can use it in high temperature environments
- Corrosion and rust resistance
- With a high open area and accurate slot dimensions
Wire-wrap screens have many advantages over other types of screens used in industrial applications. They are stronger and more durable than metal screens, and the}` can be easily cleaned and reused. This type of screen is also more resistant to corrosion than other types of screens.
Wire-wrap screens are made of V-shaped wires that are welded together at each intersection. The V-shaped wires create a wedge-shaped opening that allows smaller particles to pass through while trapping larger particles on the surface of the screen. This design gives wire-wrap screens high dirt-holdii capacity and prevents clogging.
Wire-wrap screens are available in a variety of materials, including stainless steel, carbon steel, and polypropylene. They can be used in a wide range of applications, including oil and gas production, water treatment, food processing, and pharmaceutical manufacturing.
- Material: galvanized low carton (LCG), stainless steel (304:316 etc.)
- wedge wire: Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
- support rod: Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30
- Slot size: 0.10, 0.15, 0.20, 0.25, 0.30 6.00mm also achieved upon require
- Length: up to 6 meters
- Diameter: from 25mm to 1200mm.
- End connection: Plain beveled ends, flanged or threaded couplings
Note: other specifications available as per request:
- The wedge shape of the wire, the screens have a large open area. The screens will not block even when there are some impurities in the water. Strong technical team, providing professional customized services.
- We have a strong technical team who can provide you with professional customized services according to >rour needs.
- There are various edge types (such as flat type, square type, round type) for you to choose from, which can be connected and applied to more occasions.
If you`re looking for a high-quality, durable solution for your filtering and screening needs, look no further than our cylindrical wedge wire screens. Made from sturdy materials, our wedge wire screens can withstand even the heaviest loads, making them ideal for use in mines, coal factories and other demanding applications.
- Increased durability and longevity
- High load capacity
- Versatile application in a range of settings
- Effective filtering and sizing performance
Invest in a long-lasting solution for your filtering needs with our cylindrical wedge wire screens - contact us today to learn more.
