DF - Model gG -Cylindrical Fuse Links
gG Class Cylindrical fuse links for use as general protection against overloads and short circuits, intended as protection of cables, power lines and equipment. Made of ceramic tube with high withstand to internal pressure and thermal shock, that allow a high breaking capacity in a reduced physical space. The melting elements are specially designed in order to avoid aging and thus maintain unalterable the electrical characteristics. Contact caps are made of silver plated copper.

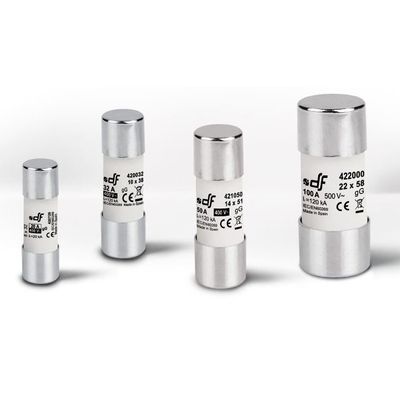

The range comprise fuse-links of sizes 8×32, 10×38, 14×51 and 22×58 with rated currents comprises between 0,5A and 125A. Available in standard version and with visual fusing indicator. For sizes 14×51 and 22×58 also available in striker version intended for use in fuse holders with microswitch.
- IEC/EN 60269-1
- IEC/EN 60269-2
- 2002/95/EC RoHS Directive
RATED VOLTAGE
400V
BREAKING CAPACITY
20kA
RATED VOLTAGE
500V
400V (32A)
BREAKING CAPACITY
120kA
RATED VOLTAGE
690V
500V (32-40A)
400V (50A)
BREAKING CAPACITY
80kA@690V
120kA@500V
120kA (32-40-50A)
RATED VOLTAGE
690V
500V (80-100-125A)
BREAKING CAPACITY
80kA@690V
120kA@500V
120kA (80-100-125A)
