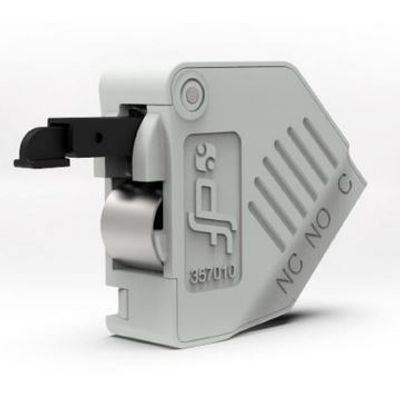

DF - Model NH -Microswitch for NH Fuse Links
Microswitch for NH fuse links with top indicator. Presence and fusing. Manual assembly. Compact design. Two positions. Manufactured with plastic materials with high temperature resistance and self-extinguishable.
All materials are according to the European Directive RoHS (Restriction of the use of certain hazardous substances in electrical material)
and they are halogen free.
TERMINALS
Brass
CONTACTS
Silver + nickel
BODY
Thermoplastic with high resistance to temperature.
RATED CURRENT
5A
RATED VOLTAGE
250V AC
USE OF MICROSWITCH IN DC
(utilization category DC-12)
5A …….. 24V DC
2A …….. 48V DC
0.4A …….. 127V DC
0.2A …….. 240V DC
Impulse withstand voltage between power circuits and microswitch terminals
Uimp > 8 kV
Dielectric withstand voltage between power circuits and microswitch terminals
7 kV – 1 min. 50 Hz
AMBIENT TEMPERATURE OF SERVICE
-20°C……70°C
FASTON TERMINALS DIMENSIONS
2,8×0,5mm
WEIGHT
12 gr.
