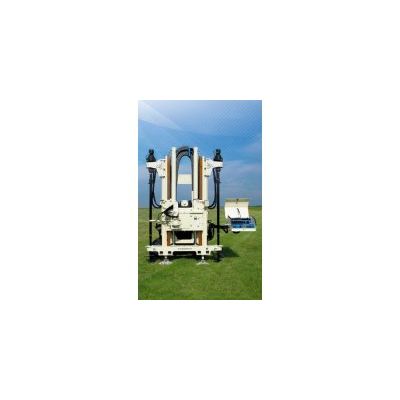

Geoprob - Model 6622CPT -DI Platform Machine
The compactness of the machine and its light weight make it convenient to mobilize to project sites. Larger pads on outriggers provide increased support when pulling tools in soft conditions. The newly designed, easy-to-use control panel gives the operator timely useful feedback.
Most popular related searches
soil and groundwater sampling
direct push rig
groundwater sampling system
direct push
groundwater sampling
soil sampling system
soil sampling
geotechnical
- Self-anchoring, multi-purpose platform
- Versatile design allows static pushing of CPT, geotechnical, and Direct Image® tools as well as use of the GH62 percussion hammer to advance Geoprobe Systems® soil and groundwater sampling systems
- 20 Ton push capacity (dependent upon anchoring conditions)
- 23-Ton pulling capacity
- Manual controls for all machine functions
- Hydraulically activated CPT chuck
- Easily removable chuck jaws
- Wide chuck opening to allow passage of larger probes or casings
- Two outboard mounted hydraulic anchor drives allow for fast and easy anchoring
- Installs anchors up to 16 inches in diameter.
- Hydraulic side-shift moves the GH62 percussion hammer to the side for static pushing and centers the hammer for percussion driving
- Two hydraulic outriggers allow easy machine leveling
- Geoprobe® 20 Series rubber tracked carrier minimizes ground pressure while providing machine stability in uneven terrain
- Auxiliary hydraulic ports located at front and rear of machine provides power for remote equipment
- Powered by a 4 cylinder, 58 HP, liquid-cooled Kubota turbo diesel engine
- Two-speed cylinders cycle from bottom to top in 5 seconds at high speed and 11 seconds on low speed
