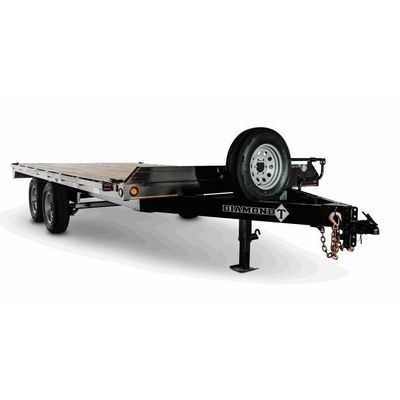

Diamond - Model MDDO104 -Medium Duty
The Diamond T Deck Over Flatdeck is leading the industry with its design and functionality. Whether you are pulling an empty trailer or a full load, the MDDO104 Trailer is an industry leader and include the following Standard Features:
- Side Handle Jack
- Reflective Tape
- Sealed Factory Wiring Harness
- Low Profile Frame Design
- Breakaway Kit w/ LED Test Light
- 100% Prime and Paint
- Tubing Tailboard w/ Sealed LED’s
- Wide Track Frame Design
- Spare Tire Rack
- Chain Tray in Tongue
- 4 – 5/8” x 3” D-Rings
- Spools in Rubrail
- Coupler: 2 5/16″ 15K Adjustable
- Jacks: 12000# Dropleg
- Safety Chains: 3/8″x39″ w/Sliphook
- Tongue: 6” Channel
- Main Frame: 6” Channel
- Outer Frame: 5″ Channel
- Rubrail: 3/8″x2″ Flat w/SP 2′ OC
- Cross Members: 3″ Channel 24″ Spacing
- Axles: 2-5200# Brake w/ E-Z Lube
- Suspension: 5 Leaf Double Eye
- Tires: 225/15 ST Load Range D Radial
- Wheels: 15” 6 on 5 1/2” Silver Mod
- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
