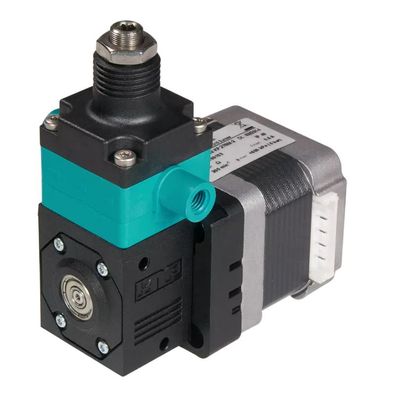

KNF - Model FEM 1.02 -Diaphragm Liquid Pump
Diaphragm Liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options.
Most popular related searches
diaphragm liquid pump
pressure relief valve
diaphragm pump
relief valve
analytical instrument equipment
analytical instrument
laboratory equipment
analytical laboratory instrument
laboratory analytical instrument
PTFE diaphragm pump
- Flow Rate (max.) 0.02 l/min
- Pressure (max.) 6 bar (rel.)
- Suction Height (max.) 4 mH2O
- Valve Material EPDM, FFKM
- Diaphragm Material PTFE
- Pump Head Material PP, PVDF
- Available Motor Types DC
- Integrated pressure relief valve
- Excellent reliability
- Low sound level
- Contamination free transfer
- Highly resistant to aggressive media
- Self priming
- Available with integrated pressure relief valve
- Can run dry
- Single-stroke dispensing
- Adjustable stroke volume
- Adjustable performance
- Medical equipment
- Analytical Instruments
- Lab equipment
- Fuel cells
