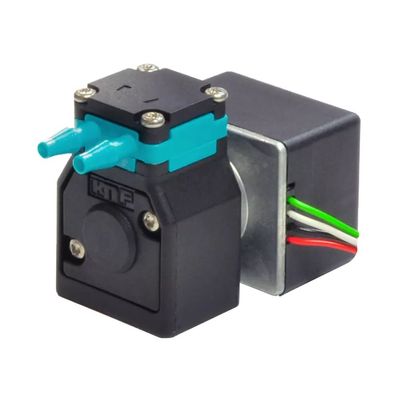

KNF - Model NF 5 -Diaphragm Liquid Pump
Diaphragm Liquid pumps combine maximum performance with minimum size. The use of chemically resistant materials enables the pumps to convey virtually any type of liquid, whether neutral or corrosive. They are dry-running, self-priming, maintenance free, and available with many different motor- and hydraulic connection options.
Most popular related searches
diaphragm liquid pump
diaphragm pump
analytical instrument equipment
analytical instrument
emissions monitoring
laboratory equipment
analytical laboratory instrument
printing system
laboratory emissions
laboratory analytical instrument
- Flow Rate (max.): 0.07 l/min
- Pressure (max.): 1 bar (rel.)
- Suction Height (max.): 3 mH2O
- Flow Rate (max.) 0.07 l/min
- Pressure (max.) 1 bar (rel.)
- Suction Height (max.) 3 mH₂O
- Valve Material EPDM, FFKM
- Diaphragm Material EPDM, PTFE
- Pump Head Material PP, PVDF
- Available Motor Types DC, Brushless DC
- Excellent reliability
- High performance-to-size ratio
- Contamination free transfer
- Maintenance-free
- Highly resistant to aggressive media
- Self priming
- Can run dry
- NSF certified
- Digitally adjustable motor
- Adjustable performance
- NSF certified
- Inkjet Printing
- Medical equipment
- Analytical Instruments
- Lab equipment
- Emission monitoring
- Fuel cells
- Cleaning and disinfection
