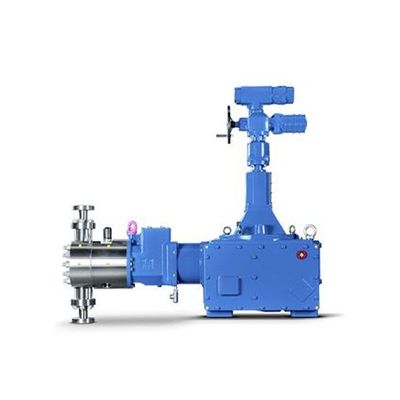

LEWA ecoflow - Diaphragm Process Pump
The ecoflow diaphragm process pump is an advanced pump for high-pressure process technology. It features a variable modular design and provides the right solution for a vast assortment of industrial applications. The DPS diaphragm protection system ensures maximum process reliability. The diaphragm process pump achieves flow rates of up to 19 m3/h per pump head and discharge pressures of up to 1200 bar.
The ecoflow diaphragm process pump is the "big sibling" of the ecoflow diaphragm metering pump. It is the world`s most advanced pump of its kind and the right solution for almost all applications in process technology requiring high discharge pressures.
The tried-and-tested modular system makes it possible to combine various pump heads and drive units in variable modular construction with an in-line or boxer design.
The ecoflow ensures dependable use even under the harshest conditions thanks to a patented sandwich diaphragm, diaphragm protection system and high drive unit durability. It is ideal for applications involving virtually any media, even hazardous, combustible, toxic, abrasive, viscous, environmentally harmful or sensitive fluids.
Good reasons for a LEWA ecoflow
The LEWA ecoflow is a hydraulically actuated process diaphragm pump in modular design and a technological pioneer on the world market.
Unique suction capability
The LEWA ecoflow diaphragm process pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar, it provides more than just a wide array of safe installation options. The operating costs for the entire system can also be decreased compared to other pumps.
Absolutely safe and reliable startup
Starting up the process pump is safe, reliable and easy: When not operating, a spring fixes the diaphragm in a neutral position at all times. This ensures that the diaphragm is never damaged due to incorrect positioning when starting up.
Safety and reliability in extreme operating states
For us, safety and reliability come first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms—not only when excess primary pressure is present, but also when the pressure or suction line is closed.
Modular system
The construction with its tried-and-tested modular system makes it possible to combine various pump heads and drive units in variable modular design with series or boxer design. This allows us to create a process pump that meets your specific needs. We take your performance needs and space requirements into account in the design.
Low maintenance costs and a long service life
The ecoflow series features a long service life for all components and particularly low maintenance and operating costs. If regular maintenance intervals are maintained, our diaphragm pumps can operate for 40 years or more in your production process.
- Type : Hydraulic power[kW]
- LDF : 3.5
- LDG : 6.0
- LDZ : 15
- LDH/LDHB : 20/35
