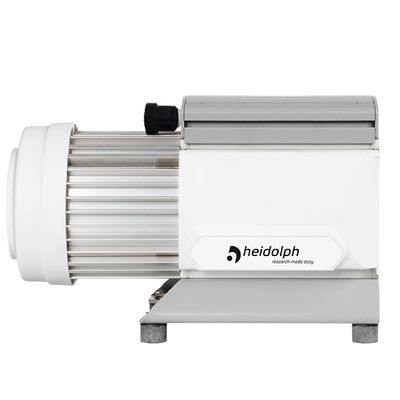

Hei-VAC - Model Valve Tec -Diaphragm Vacuum Pumps
For all Hei-VAP models. Recommended for solvents within the low to medium boiling temperature range.Most popular related searches
- Recommended for solvents within the low to medium boiling temperature range
- The vacuum regulation can be valve controlled or take place via the manual vacuum controller
- A vacuum valve is necessary if the vacuum pump is to be combined with the Hei-VAP Expert Control/ Hei-VAP Ultimate Control
- Diaphragm pump: Two-stage
- Suction capacity: 0.75 m³/h
- Ultimate vacuum: 12 mbar
- Combinable with a condenser: yes
- Power input: 80 W
- Weight: 6.5 kg
- Dimensions without condenser (w/d/h): 145 x 338 x 185 mm
