Omega - Model XF2087/25.7*36 - 660DRLP -Dichroic Filter

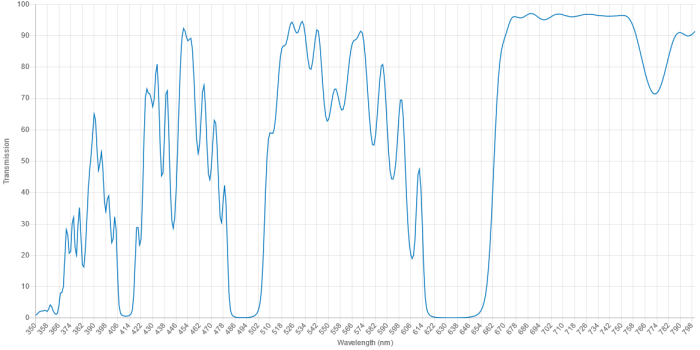

The spectral curve and ascii data is a typical representation of this filter’s performance, but will vary due to production and design variations. Omega only guarantees this part to meet the product specifications listed.
- Transmission: ≥ 90% avg 670-750nm
- Transmitted Wavefront Distortion: ≤ 1/4 wave per inch
- Angle of Incidence: 45
- Minimum Surface Quality Assembly per MIL-C-48497A (E scratch/ E Dig)
- Coating Type: Surface Coating
- Filter Type: Dichroic
- Filter Application: Dichroic
- Half-cone AOI: 0
- Fluorescence Component: Dichroic
- Reflection: ≥ 95% avg 620-650nm
- Flatness: ns
- Parallelism: ≤ 15 arc seconds
- AR Coating: BBAR
