Omega - Model XF2443/25.7*36 - 485-560DBDR -Dichroic Filter

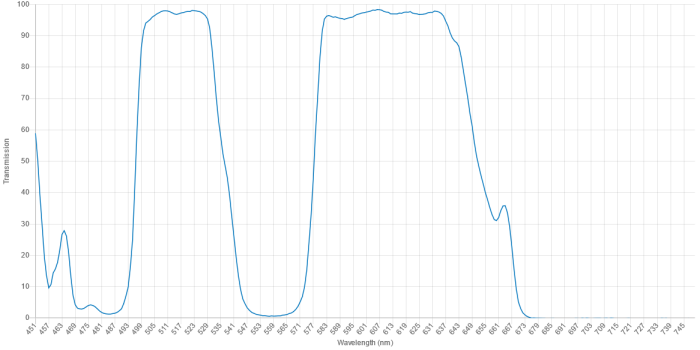

The spectral curve and ascii data is a typical representation of this filter’s performance, but will vary due to production and design variations. Omega only guarantees this part to meet the product specifications listed.
- Transmission ≥ 80% avg 500-530nm & 580-635nm
- Transmitted Wavefront Distortion: ns
- Angle of Incidence: 45
- Minimum Surface Quality Assembly per MIL-C-48497A (F scratch/ F Dig)
- Coating Type: Surface Coating
- Filter Type: Dichroic
- Filter Application: Dichroic
- Half-cone AOI: 0
- Fluorescence Component: Dichroic
- Reflection: ≥ 90% 470-490nm & 550-570nm
- Flatness: ns
- Parallelism: ns
- AR Coating: BBAR
