CPI Prodysol - Model TGCD -Dielectric Insulation Flange Gasket Kit
Dielectric insulation flange gasket kits typically used in offshore installations, water environments, chemical installations, oil refinery pipelines, etc. CPI-TGCD dielectric kits are the most widely used way to control corrosion losses. They can be used to control electrical currents in oil, gas, water, refinery, and chemical plant pipelines, to increase the effectiveness of protection systems and limit or eliminate electrical corrosion.

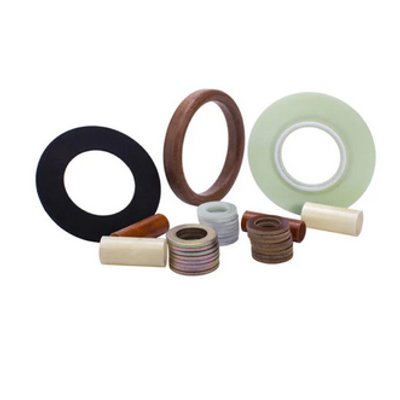

CPI dielectric kits are composed of:
- insulating sealing gasket
- bolt sleeves or tubes
- insulating and metal washers
Elements designed to electrically isolate the flow of currents in pipes, flanges and metal equipment.
Dielectric gaskets are used to electrically insulate flanges, preventing corrosion and prolonging their useful life.
CPI-TGCD kits according to ANSI 16.5 and API 605. Other standards available upon request.
CPI-TGCD flange kits consist of an assembly consisting of: an insulating gasket, insulating sleeves, and washers appropriately sized for the intended application and conveniently packaged to minimize the possibility of loss of components during installation.
They prevent metal-to-metal contact, stopping static electricity. Dielectric kits or assemblies provide an effective seal and are designed to maintain system integrity and reliability.
Made of materials with a high dielectric constant and low water absorption, they consist of a central gasket, bushings to protect the bolts, iron washers, and insulating washers manufactured according to the flange measurements.
In this way, they manage to avoid corrosion and prolong their useful life for many years.
CPI PRODYSOL produces dielectric assemblies according to DIN or ASA standards or to customer specifications.
