Arjay - Model 2852-CAP -Dielectric Monitoring Probe for Liquid Blending
Reliable monitoring of process conditions and concentration. The sensing probe continuously monitors the dielectric stability of the product. Changes in dielectric can be tagged to product quality changes, moisture content, emulsions, concentrations and product phase changes. Typical applications include liquid blending, moisture content of solids, upset product intrusion or separation, and general product quality.
The 2852-CAP sensing probe monitors the capacitance field around the probe.

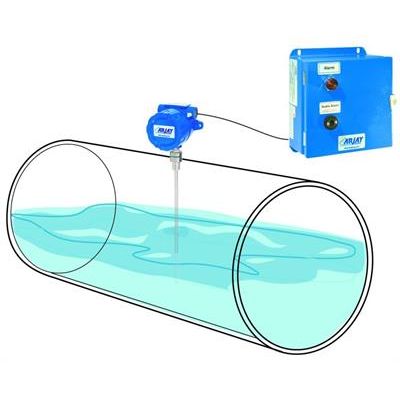

The active portion of the probe is fully submerged into the liquid or solid to the point of targeted interest. Changes in product dielectric due to blending of other products, moisture content of solids, or process cracking will cause a positive or negative capacitance change around the probe. This change is used to provide a 4-20 mA proportional output, and two set-point alarm relays.
- No moving parts
- Remote monitor mounts away from the process for operator safety and ease of control wiring
- Remote electronics via standard twisted pair
- Explosion proof probe is standard
- Probe is available with Intrinsically Safe option for alternative HazLoc protection
- High corrosion resistant Teflon and stainless steel wetted parts
- Capacitance technology responds to all product types
- HF capacitance technology does not require routine cleaning
- Easy calibration and control set-up
- Operating Temp. -20˚C to 55˚C
- Resolution .007% (.07 pF at 1,000 pF)
- Accuracy .04% of full scale pF
- Power Input 12 vdc or 24 vdc or 100-240 vac +/- 10%
- Alarm Relay 2 x 10 amp@240 vac, SPDT dry, discrete relays with differential control
- Analog output 4-20mA proportional output, non-isolated
- Communication Modbus RS-485
- Certified UL 61010-1, 2nd Edition
- CAN/CSA-22.2 61010-1-4
- IEC/EN 61010-1, 2nd Edition
- IEC 61326-1
- CE Declared
- Enclosure Type 4/IP 66 painted steel
- or Type 4X/IP 66 polycarbonate or SS
- Optional Light, buzzer, beacon
- Probe: -60°C to +260°C
- PMC: -60°C to +55°C
- Approval: CSA Div 1, Class I, Groups C,D
- Intrinsic Safety: CSA Intrinsically Safe when ordered with
- Approved Barrier in Control Unit
- Div 1, Class I, Groups A,B,C,D;
- Class II, Groups E,F,G;
- Class III, Encl.Type 4
- CRN: ABSA-CRN #OF07450.2
- Wetted Parts: 316SS and Teflon
Probe materials are eligible for NACE MR-0175 Compliance
