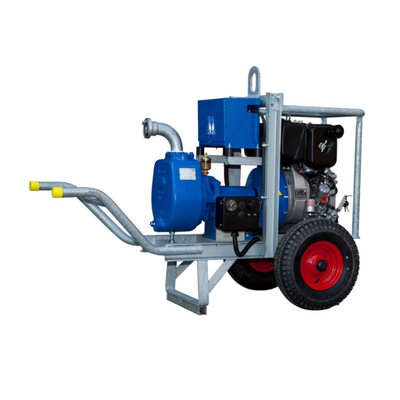

BBA Pumps - Model B60-220 Jetting -Diesel Driven 2 Inch Self-Priming Centrifugal Pump
The B60-220 is a 2 inch self-priming centrifugal pump suitable for pumping slightly contaminated water with solids up to 14 mm. This single-cylinder diesel driven pump on a galvanized wheelbarrow frame is used around the world in a variety of applications. A small mobile diesel pump for irrigation, emergency firefighting, construction, jetting wellpoint filters and deck washing. Pump flow up to 46 m³/h, Maximum total head 53 mwc.
- Discharge x Suction: 2" x 2"
- Max. flow: 46 m³/h
- Max. head: 53 mwc
- Free passage: 14 mm
- Material: cast iron (others on request)
- Engine: Hatz
- Max. speed: 3000 rpm
- Starting method: electric start
- Dry weight: 300 kg
Features
B self-priming centrifugal pump
The B range of pumps have been designed with a clear focus on reliability, efficiency and durability, ranging from 1-1/2ʺ to 12ʺ. Featuring an open impeller configuration in combination with a changeable wear plate, facilitating servicing and minimising costs of spares. All B series pumps are fitted with a non return valve in the suction port, eliminating the need for a foot valve in suction line and allowing quick priming.
Design features
- Basic, reliable technology
- Large solids handling capacity
- Suitable for use with hot fluids
- Wet self-priming
- Cooled shaft seal
Fields of application
- Shipping
- Industry
- Construction
- Waste water management
- Emergency pump units
- Irrigation
- Agriculture
Complete package designed & built by BBA Pumps
- Complete in-house design & production
- Over 60 years of experience in the market
- Extensive testing facility in-house
- Contemporary & functional design
- Durable & eco-friendly materials
- Custom builds available
After sales service & product support
- Single supplier for parts, spares & accessories
- Dedicated customer help-desk (24h service)
- Dedicated service department in-house
- Global parts distribution network
- Optional global on-site servicing
- Extensive training options available (technical & commercial), on-site or in-house
BBA self priming pump
- Pump type: B60-220
- Max. flow: 46 m3/hour (202 US GPM)
- Max. head: 53 mwc (174 feet)
- Impeller type: Semi-open impeller
- Solids handling: 14 mm (0.55 inch)
- Pump casing: Cast iron GG20
- Impeller: Cast iron GG20
- Wear plate: Cast iron GG20
- Pump shaft: C45
- Shaft seal: Mechanical seal
- O-ring: Viton
Engine
- Engine brand: Hatz
- Engine type: 1D90Z
- Flywheel power kW (hp): 11.2 kW (15 Hp)
- Max. engine speed: 3000 RPM
- Fuel consumption: 280 g/kWh
- Displacement: 0.722 l
- Number of cylinders: 1
- Balancing: 100% of free mass forces
- Cooling system: Air cooled
- Exhaust emission US: Tier 4
- Starter: Electric start
Frame
- Frame type: Wheelbarrow
- Material: Galvanised
- Fuel tank: Approx. 10 L
- Lifting point: Fitted with single lifting point
- Connections: Please consult “auxiliary items”
- Tires: 2 rubber tires
- Tow bar: N/A
General
- Steel fuel tank 10 L. net (2.7 US Gallon)
- Fuel tank cap Ø 60 mm
- Mechanical fuel injection system
- Premium quality battery
