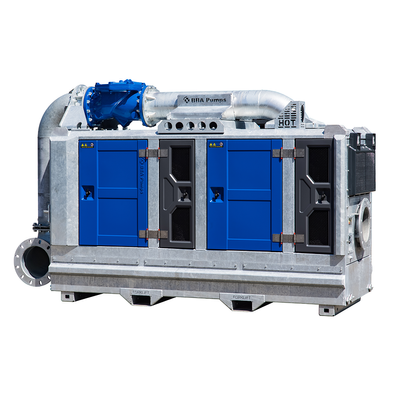

BBA Pumps - Model BA300E D328 Multi-Use -Diesel Driven Dewatering and Sewage Pump

• For dirty water and sewage
• Pump flow up to 1280 m³/h
• Pump head up to 21 mwc
• Free passage of 105 x 120 mm
• 4 years BBA Pumps limited warranty

Centrifugal Pump
The BA300E is a 12-inch BBA Pumps centrifugal pump with open impeller and adjustable wear plate with cutting slots. The large solids handling is unparalleled at 105 x 120 mm, making this a real dirty water pump. Best-in-class pump efficiency and an excellent NPSH curve lead to an ultra-performing unit. Other standard features are large inspection covers, suction and pressure gauges and a heavy duty bearing frame with an extra oil chamber for dry running.

Priming System
Featuring a fully automatic priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. A genuine BBA Pumps priming system includes a diaphragm vacuum pump, a check valve on the discharge side and a float box for air-water separation on the suction side.

Diesel Engine
The pump is driven by a clean and economical Perkins diesel engine. The electronically controlled variable speed engine meets the stage V emission requirements. Low fuel consumption and minimal noise emissions are key features of this engine.

Sound Attenuated Canopy
BBA Pumps canopies are known as the most innovative and robust in the world. Pumps in sound attenuated canopies are super quiet, safe to use and protected against the elements. The fully self-contained unit features a composite fuel tank and fluid containment system. To aid mobility, the forklift pockets and lifting eyes are fitted as standard. The discharge pipe runs over the roof and is fitted with a rotary discharge flange.

• Discharge x Suction: 12" x 12"
• Max. flow: 1280 m³/h
• Max. head: 21 mwc
• Free passage: 120 x 105 mm
• Priming system: MP100 (100 m³/h)
• Engine: Perkins
• Max. speed: 1600 rpm
• Fuel consumption at BEP: 19 l/h
• Canopy: M12-29
• Sound level: 72 dB at 10 m
• Dimensions L x W x H: 3455 x 1200 x 2125 mm
• Dry weight: 3600 kg
• Warranty: 4 years

BA auto prime pump

The BA range of pumps has been designed with a clear focus on reliability, efficiency and durability. Featuring a 100% mechanical priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. The heavy build style of both pump and canopy make the BA range perfect for use in the strenuous contractor market.

World-class performance

The BA range is built to be deployed on the most demanding dewatering and sewage bypassing applications. Using high efficiency pumps and state-of-the-art diesel engines, the pumps offer maximum performance at minimal cost, fully in-sync with the company philosophy of “Lowest cost of ownership”.

Sustainability

• High efficiency pumps minimising fuel consumption
• Emissions in accordance with EU stage & US EPA Tier regulations
• Corrosion free hot dip galvanised canopy
• Corrosion free composite door panels and powder coated plating
• 100% Oil-spill free priming system
• Fully bunded unit eliminating fuel/oil spills at all times

Complete package designed & built by BBA Pumps

• Complete in-house design & production
• Over 60 years of experience in the market
• Complete testing facility in-house
• Contemporary & functional design
• Durable & eco-friendly materials
• Custom builds available

After sales service & product support

• Single supplier for parts, spares & accessories
• Dedicated customer help-desk (24h service)
• Dedicated service department in-house
• Global parts distribution network
• Optional global on-site servicing available
• Extensive training options available (technical & commercial), on-site or in-house

BBA auto prime pump

• Pump type: BA300E D328
• Max. flow: 1250 m3/hour (5500 US GPM)
• Max. head: 19 mwc (63 feet)
• Impeller type: Semi-open impeller
• Solids handling: 120 x 105 mm (4.7 x 4 inch)
• Pump casing: Cast iron GG20
• Impeller: Chrome Moly 42CrM04
• Wear plate: Cast iron GG25
• Pump shaft. 42CrV6
• Shaft seal: Mechanical seal
• Seal faces: HM/HM
• O-ring: Viton

BBA priming system

• Pump type: BBA MP100 Diaphragm pump
• Air handling capacity: 100 m3/h (59 CFM)
• Max. vacuum: 8.5 m (29 inHg)
• Drive: Toothed belt (continuous drive)
• Float box: Steel hot dip galvanised
• Non return valve: Cast iron GG25
• Check valve disc: Buna-N

Engine

• Engine brand: Perkins
• Engine type: 854E-E34TA
• Max. power @ 2500 rpm: 86 kW (117 Hp)
• Engine speed: 1500 RPM
• Fuel consumption: 212 g/kWh
• Displacement: 3.4 litres
• Number of cylinders: 4
• Aftertreatment: DOC, DPF (3000 hours service interval)
• Exhaust emission EU: Stage IIIB
• Exhaust emission US: Tier 4 interim

BBA control panel LC30

• Auto start/stop system
• Two float switches included (10m cable)
• Switch Manual-0-Auto
• RAMP-UP/DOWN function
• Rpm. control with push buttons
• Warning lights
• 4.3” LCD monitor

The LCD monitor displays additional engine data, e.g. actual engine speed, working hours, battery voltage, fuel consumption and failures in clear text (10 language support)

Fuel system

• PE fuel tank 300 L. net (80 US Gallon)
• Fuel tank cap Ø 100 mm
• Electronic fuel injection system

Electrical system & safety features

• Nominal voltage 12 Volt
• Premium quality battery
• Engine safety features like overload shutdown

CANOPY M10-30 (discharge roof pipe)

BBA sound attenuating canopy

• Canopy type. M10-30
• Dimensions L x W x H: 3600 x 1050 x 2160 mm
• Dimensions L x W x H: 141.7 x 41.3 x 85 inch
• Basic frame: Hot dip galvanised
• Doors: 6 composite easy-access doors (lockable)
• Fuel tank: PE net 300 ltr (80 US Gallon)
• Fuel tank autonomy: 18 hours (at 1500 rpm BEP)
• Fuel tank cap: 100 mm (4 inch)
• Module (10-23 kit): Oil drain pump – battery isolator – external fuel tank connector
• Forklift pockets. Fitted with 2 forklift pockets
• Lifting point: Fitted with 2 lifting points
• Connections: Please consult “auxiliary items”
• Exhaust system: Fully integrated in canopy
• Radiator box: Genuine Perkins
• Additional: Fitted with oil-water separator
• Documentation box: BBA user manual and warranty book
