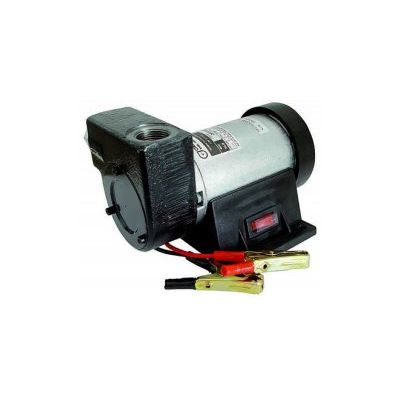

T-T Pumps - Model AG35 / AG46 -Diesel Transfer Pump
FromT-T Pumps Ltd.
Desel transfer pumps that incorporate a self-adjusting rotary vain design. The cast iron pump body is fitted with a bypass valve and Stainless Steel filter in the suction.
Most popular related searches
- Agriculture
- Building
- Marine
- Industry
- Plant
- Transport
An easy installation kit, with the necessary elements to transfer diesel composed of:
- AG35 Pump, PSF-040 - manual aluminium nozzle with F1" swivel and curved end
- 4m antistatic delivery hose Ø19mm double layer for diesel, with F1"- swivel and curved end
- PP Lower filter with stainless mesh, 2 brackets 23 x 35 brass elbow 90º MF 3/4" and adapter 3/4" PP
- Self-priming: Eccentric with self-adjusting blades
- Recirculation by-pass
- AG35 motor: 0.30kW (12 and 24 VDC), self-ventilated, RPM 3,000
- AG46 motor: 0.25kW, 230VAC 50/60Hz, self-ventilated, RPM 2,800
- Connection F3/4" / F1" (BSP)
- Continuous duty
- IP55 Protection
- On/Off switch
- Stainless steel filter in the suction of 352 micron
