GA Industries - VAG USA, LLC

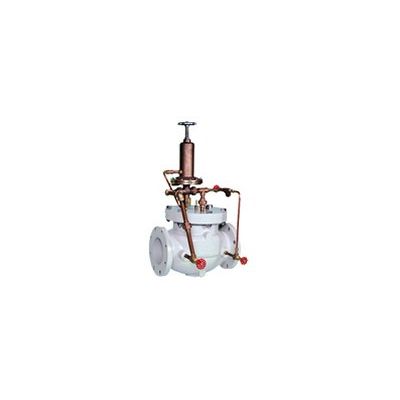

Differential Piston Actuated Flow Control Valve
The GA Rate of Flow Control Valve limits the flow to the downstream system, regardless of fluctuations in upstream or downstream line pressure. This rugged and versatile piston control valve provides superior design, simple operation, and maximum performance in water control.
Most popular related searches
flow control valve
control valve
flow control
piston control valves
epoxy coating
water control system
water control valve
water control
piston valve
position indicator
Product features and benefits
- Rugged and corrosion resistant
- Flow efficient full port design
- Exclusive V-port design for stable flow control
- Cavitation resistant
- Visual position indicator
- 2" - 36" Heavy Duty Cast Iron Globe or Angle Body
- Available with reducing, sustaining, solenoid or check
Material
- Body: Cast Iron, ASTM A126 Class B (NSF-61 Epoxy Coated)
- Cover: Steel, ASTM A36 (NSF-61 Epoxy Coated)
- Cover Fasteners: Steel, ASTM A307
- Piston, Liner, Seat Ring: Bronze, ASTM B62
- Seals: Buna-N or Composition
- Renewable Seat: Buna-N
- Internal Fasteners: Stainless Steel, Type 304
- High strength epoxy coating
