S-Meter Eletta - Model S Series - ...

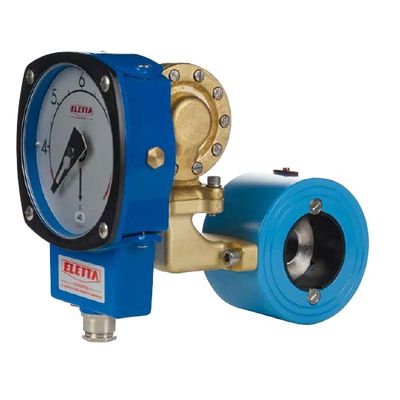

S-Meter Eletta - Model S Series -Differential Pressure Flowmeters

Eletta`s difference measurement models, the "S" Series, are the most preferred, economical, expandable (4-20mA output can be added) models with their large mechanical display and 2 limit outputs with 1:2 or 1:5 flow range.

Most popular related searches

differential pressure flow meter

Especially in the flows in cooling water or oil flow systems in iron-steel and casting factories,
In water and oil measurement applications in transformer systems,
In applications requiring alarm output in min. – max. flow situations of pumps and motors,
In applications requiring dry running prevention to protect expensive equipment,
They can be used in both liquid, oil and air measurement applications.

1:2 or 1:5 range can be selected for the flow range.
If desired, min. and max. flow rate alarm output options are available.
They can be used in different industrial (clean) liquids with GL-FA-GSS-FSS type sensors.
Operating temperatures can be between 90°C/120°C/250°C depending on sensor type and local-remote installation type.
The pressure class for all models is PN16.
Available in diameters from DN15 to DN500.
Accuracy rate ± 5% (FS 20-80%).

It has a solid structure and trouble-free operation design.
When used on suitable lines, it does not require maintenance or repair for a long time.
Not affected by Magnetic Fields
It has a 120mm dial with a linear scale so it can be read from a distance.
With an additional interface, 4-20mA output can be obtained if necessary.

S-Meter Eletta - Model S Series -Differential Pressure Flowmeters

Applications

Features

Advantages
