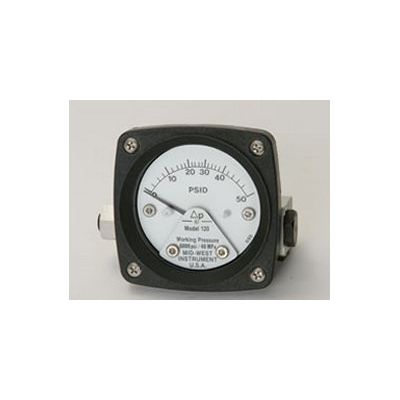

Mid-West - Model Piston Type 120 -Differential Pressure Gauge & Switch

• Filter/Strainer Monitoring
• Compressed Air
• Hydraulic
• Refrigerant
• Pump Performance Testing
• Heat Exchanger Pressure Drop Monitoring

Product Features/Benefits

• Simple Rugged Designs
• Glass Reinforced Thermoplastic Gauge Front Is Standard
• Weather Resistant & Corrosion Resistant Gauge Front
• Shatter Resistant Lens
• 5 Year Warranty

Specifications:

• Differential Pressure Range 0-5 PSID to 0-110 PSID (0-0.35 to 0-7.0 bar)
• Available in a Variety of Equivalent Ranges & Scales
• Accuracy ±2%*
• Operating Temp -40ºF to +200ºF (-40ºC to +93ºC)
• Dial Size 2-1/2" Round (Standard), 3-1/2" Round (Optional), 4-1/2" Round (Optional)
• Working Pressures up to 6000 PSIG
• Material of Construction of Body - Aluminum, 316/316L Stainless Steel, Aluminum Bronze and Monel
• Materials of Construction of Internals - 316 Stainless Steel (Standard) and Monel
• Switch Options

  • SPDT 3W, 125 VAC/VDC, 0.25 amps
  • SPDT 60W, 240 VAC/VDC, 1.0 amps
  • SPST 60W, 240 VAC/VDC, 3.0 amps
• Electrical Enclosures Weather-Resistant, NEMA 4X or NEMA 7
• CE Marked in Accordance With Low Voltage Directive
• Hazardous Locations
• Div I
• Div II

• Over-range Protection Full to Maximum Working Pressure
• Panel Mounting Standard
• Pipe Mounting Kit Optional - 2" U-Bolt
• Wall Mounting Optional - Rear Mount
• NACE Compliance Optional
• Seismic Compliance Contact Factory
