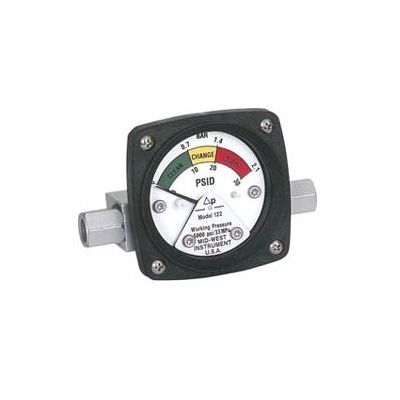

Mid-West - Model Piston Type 122 -Differential Pressure Gauge & Switch
DP Ranges from 0-5 PSID to 0-110 PSID. Piston Sensing Element. 3000 PSIG Working Pressure (200 bar). Over-Range Protection, High over Low and Low over High. Gauge Housings Aluminum with 316 Stainless Steel Internals. 2-1/2”, 3-1/2”, or 4-1/2” Round Dial. Wide Range of Elastomers.
Most popular related searches
differential pressure gauge
pressure gauge
filter strainer
pressure monitoring system
compressed air
filter monitoring
corrosion gauge
pump test
pressure monitoring
pressure switch
Common Applications
- Filter/Strainer Monitoring
- Compressed Air
- Hydraulic
- Refrigerant
- Pump Performance Testing
- Heat Exchanger Pressure
- Drop Monitoring
Product Features/Benefits
- Simple Rugged Designs
- Glass Reinforced Thermoplastic Gauge Front is Standard
- Weather Resistant & Corrosion Resistant Gauge Front
- Shatter Resistant Lens
- 5 Year Warranty
Specifications:
- Differential Pressure Range 0-5 PSID to 0-110 PSID (0-0.35 to 0-7.0 bar)
- Accuracy ±5% Full Scale
- Working Pressure 3,000 PSIG (200 bar)
- Operating Temp. -40º F to +200º F (-40ºC to +93ºC)
- Body Material: Aluminum
- Internal Materials: 316 Stainless Steel
- Switch Options
- SPDT 3W, 125 VAC/VDC, 0.25 amps
- SPDT 60W, 240 VAC/VDC, 1.0 amps
- SPST 60W, 240 VAC/VDC, 3.0 amps
- CE Marked in accordance with low voltage directive
- Switch Mounting: Clamp On, Stick On Flat Pack
- Process Connections: 1/4" FNPT End Conn.
- Gauge Design: Magnetically Coupled Piston
- Base Dimensions 3.3H" x 1.97W" x 4.93L"
Special Features:
- Over-range Protection Full to Maximum Working Pressure
- Panel Mounting Standard
- Pipe Mounting Kit Optional - 2" U-Bolt
- Wall Mounting Optional - Rear Mount
