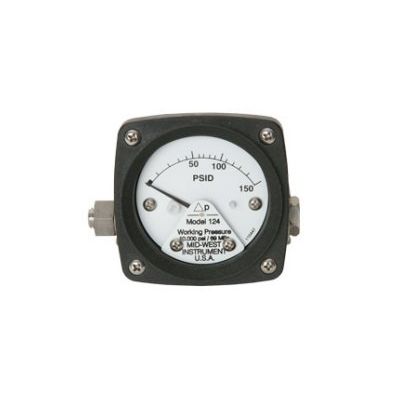

Mid-West - Model Piston Type 124 -Differential Pressure Gauge & Switch
DP Ranges from 0-5 PSID to 0-400 PSID. Piston Sensing Element. Working Pressure up to 10,000 PSIG (689 bar). Proof Pressure 20,000 PSIG. Over-Range Protection, High over Low and Low over High. Gauge Housing 316L Stainless Steel. Wide Range of Elastomers.
Most popular related searches
differential pressure gauge
pressure gauge
filter strainer
pressure monitoring system
compressed air
deep well
pressure filter
pressure monitoring
filter monitoring
corrosion gauge
Common Applications
- Sub Sea / Deep Well
- High Pressure Filter/Strainer Monitoring
- Compressed Air
- Hydraulic
- Refrigerant
- Pump Performance Testing
- Heat Exchanger Pressure Drop Monitoring
Product Features/Benefits
- Simple Rugged Designs
- Glass Reinforced Thermoplastic Gauge Front Is Standard
- Weather Resistant & Corrosion Resistant Gauge Front
- Shatter Resistant Lens
- 1 Year Warranty
Specifications:
- Differential Pressure Range 0-5 PSID to 0-400 PSID (0-0.35 to 0-27.6 bar)
- Available in a Variety of Equivalent Ranges & Scales
- Accuracy ±2%*
- Operating Temp -40ºF to +200ºF (-40ºC to +93ºC)
- Dial Size 2-1/2" Round (Standard), 3-1/2" Round (Optional), 4-1/2" Round (Optional)
- Working Pressure 10,000 PSIG
- Material of Construction of Body - 316/316L Stainless Steel, adjusting Screws & end plugs
- Materials of Construction of Internals - 316 Stainless Steel
- Switch Options
- SPDT 3W, 125 VAC/VDC, 0.25 amps
- SPDT 60W, 240 VAC/VDC, 1.0 amps
- SPST 60W, 240 VAC/VDC, 3.0 amps
- Electrical Enclosures Weather-Resistant, NEMA 4X
- CE Marked in Accordance With Low Voltage Directive
- Transmitter Options
Special Features:
- Over-range Protection Full to Maximum Working Pressure
- Panel Mounting Standard
- Pipe Mounting Kit Optional - 2" U-Bolt
- Wall Mounting Optional - Rear Mount
- NACE Compliance Optional
