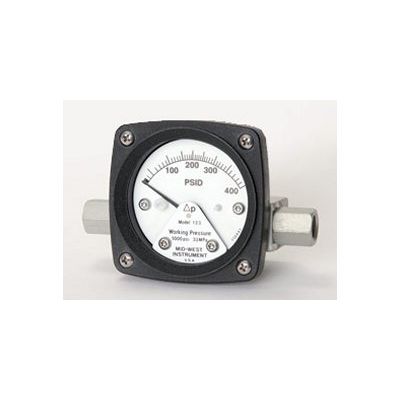

Mid-West - Model 123 -Differential Pressure Piston-Type Gauge & Switch
DP Ranges from 0-150 PSID to 0-400 PSID. Piston Sensing Element. 5000 PSIG Working Pressure (340 bar). Over-Range Protection, High over Low and Low over High. Material Construction: Aluminum, 316/316L Stainless Steel. 2-1/2”, 3-1/2” or 4-1/2” dial. Reverse Pressure Ports Available.
Most popular related searches
differential pressure gauge
pressure gauge
filter strainer
compressed air
pressure monitoring system
filter monitoring
corrosion gauge
pump test
pressure monitoring
air monitoring
Common Applications
- Filter/Strainer Monitoring
- Compressed Air
- Hydraulic
- Refrigerant
- Pump Performance Testing
- Heat Exchanger Pressure Drop Monitoring
Product Features/Benefits
- Simple Rugged Designs
- Glass Reinforced Thermoplastic Gauge Front Is Standard
- Weather Resistant & Corrosion Resistant Gauge Front
- Shatter Resistant Lens
- 5 Year Warranty
Specifications:
- Differential Pressure Range 0-150 PSID to 400 PSID (0-10.3 to 0-27.6 bar)
- Accuracy ±2%*
- Working Pressure 5000 PSIG (340 bar)
- Available in a Variety of Equivalent Ranges & Scales
- Dial Size 2-1/2" Round (Standard), 4-1/2" Round (Optional)
- Working Pressure 6000 PSIG
- Material of Construction of Body - Aluminum, 316/316L Stainless Steel, Aluminum, Bronze, Monel
- Materials of Construction of Internals - 316 Stainless Steel (Standard), Monel
- Switch Options
- SPDT 3W, 125 VAC/VDC, 0.25 amps
- SPDT 60W, 240 VAC/VDC, 1.0 amps
- SPST 60W, 240 VAC/VDC, 3.0 amps
- Electrical Enclosures Weather-Resistant, NEMA 4X
- CE Marked in Accordance With Low Voltage Directive
Special Features:
- Over-range Protection Full to Maximum Working Pressure
- Panel Mounting Standard
- Pipe Mounting Kit Optional - 2" U-Bolt
- Wall Mounting Optional - Rear Mount
- NACE Compliance Optional
