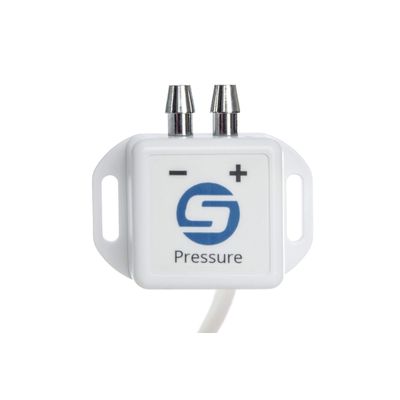

SensoScientific - Model DP001 -Differential Pressure Probe
SensoScientific differential pressure probes are made from ABS plastic and measure within ±0.1 inWC. These high-accuracy sensors monitor bi-directional and unidirectional pressure as well as positive and negative air flow. Differential pressure probes are designed with two mounting slots for easy installation via screws or zip ties. Probes come equipped with an industrial-grade M8 connector that can be attached to any SensoScientific device and feature a metal fastener that ensures secure attachment. All probes are NIST traceable and calibrated from SensoScientific’s A2LA Accredited Calibration Laboratory. Certificates of calibration can be found on the SensoScientific Cloud for immediate use.
- Positive and Negative Air Flow
- Accuracy: ±0.001 inWC
- Device-Level Certificates
- 6" Cable
- Uni- and Bi-directional Pressure Measurement
- A2LA Accredited Calibration
- Industrial-grade Metal Fastener
- Digital Calibration Certificate
- Range: ±0.1 inWC
- M8 Connector
- Compatible with SensoScientific Devices
- Pressure Verification
- Differential Pressure Range: ±0.1 inWC
- Accuracy: ±0.001 inWC
- Housing: ABS Plastic
- Dimensions:
- Width: 1.36″ (34.5mm)
- Length: 1.36″ (34.5mm)
- Cable Length: 6″
- Connector Type: M8
- Airborne Infection Isolation (All) Rooms
- Pharmaceutical Clean Rooms
- Special Procedure Rooms
- Operating Rooms
- Protective Environment (PE) Rooms
- Sterile Lab Environments
- Cytology Labs
- Infectious Materials Waste Rooms
- HVAC Systems
- Laboratories
- Animal Testing Research Facilities
- Morgues
Probes attach to SensoScientific nodes via M8 connector to measure desired parameters.
Nodes use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.
From the cloud, you can view calibration certificates, access data records, and more.
