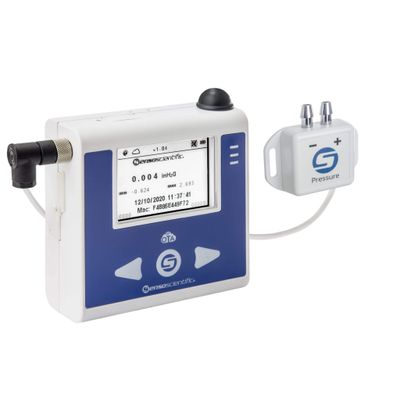

SensoScientificModel Wi-Fi - B20-200-OTA -Differential Pressure Sensor

SHARE

Monitor differential pressure between positive and negative pressure locations up to ±0.1 inWC. SensoScientific Wi-Fi transmitters are high speed wireless modules with PEAPv0 enterprise security, capable of collecting, storing, and transmitting data wirelessly over a standard 802.11 b/g/n (Wi-Fi – RF Frequency 2.4 to 2.497 GHz) with TCP protocol. The transmitter passes information to a standard access point which can be accessed by any Wi-Fi enabled network. Each transmitter monitors against preset conditions that are defined by the user. Additional alerts can be provided through a variety of methods such as SMS, text message, voice, pager, cell phone, fax, and e-mail. Information recorded in PPB or PPM to the database is time-stamped and cannot be altered through the user interface.

Most popular related searches
  • Onboard, Low Power E-Ink Display
  • Push Button for Real-Time Readings
  • Dual Power ? Battery & AC
  • True Embedded Wi-Fi Solution
  • NIST & A2LA Accredited SNAP Calibration
  • Enterprise-Wide Scalability
  • Device-Level Certificates
  • Multi-LED for Connectivity Status
  • FIPS Compliant Validated Cloud
  • FDA 21 CFR Part 11 Compliant
  • Lowest Total Cost of Ownership
  • No Proprietary Software
  • Differential Pressure Range: ±0.1 inWC
  • Accuracy: ±0.001 inWC
  • Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH
  • Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
  • Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud
  • RF Frequency: 2.4 to 2.497 GHz
  • Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
  • Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
  • Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports
  • Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount
  • Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ? AC/DC Power Supply (UL Certified)
  • Battery Life: 1 Year
  • Dimensions:
    • Height: 4.25″ (108mm)
    • Width: 3.88″ (98mm)
    • Length: 1.38″ (35mm)
  • LDAP: Single Sign-on Capability
  • Certificates: Device-level Certificates
  • Warranty: 3-Year Warranty
Wireless Sensor

Data Loggers use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.

SensoScientific Cloud

From the cloud, you can customize node settings, generate reports, and more.

24/7 Alert Notifications

The cloud sends real-time notifications when readings fall outside range.
