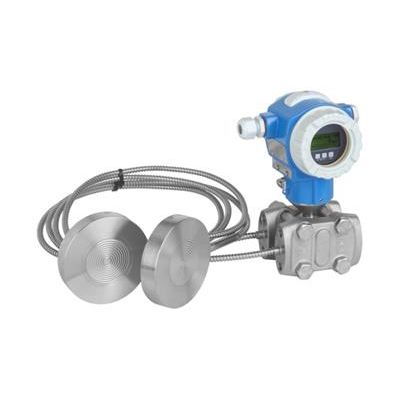

Deltabar - Model FMD78 -Differential Pressure Transmitter

• Large variety of different process connections and membrane materials

• New TempC Membrane for diaphragm seals: Minimum temperature effects and short recovery times

• Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508

• Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

• Cost savings with modular concept for easy replacement of sensor, display or electronics

• Seamless and independent system integration (HART/PA/FF)

For differential pressure, level, volume or mass measurement in liquids.

• Process connections: Threads, flanges, pancake and hygienic connections

• Process temperature: -70 up to +400°C (-94 to +752°F)

• Measuring ranges: 100mbar to +16bar (1.5 to 240psi);

• Accuracy: ±0.075%

• International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
