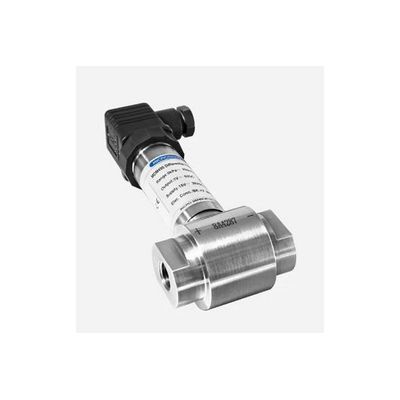

MicroSensor - Model MDM490 -Differential Pressure Transmitter
The sensing element of MDM490 is a diffused silicon piezoresistive differential pressure sensor with a stainless steel 316L isolation diaphragm. The reliable performance of the DP sensor is due to temperature compensation and aging screening. It enables zero and full scale to be adjusted externally. MDM490 has obtained CE and RoHS certifications.MDM490 DP transmitter is used for various gas and liquids differential pressure measurements of the pipeline, cylinder, bulk, and micro bulk.
Most popular related searches
differential pressure transmitter
pressure transmitter
differential pressure monitoring
pressure monitoring
industrial process control
differential pressure sensor
pressure sensor
piezoresistive pressure sensor
tank containment
fluid measurement
- 0bar~0.35bar...35bar
- Accuracy: ±0.5%FS
- DP Measurement
Used For
The differential pressure transmitter measures fluids, gas and liquid differential pressure in tanks and container during industrial process control. Low range differential pressure measuring is available.
- Gases & liquids differential pressure measurement
- Small size, easy installation
- Laser welding & All stainless steel sealed structure
- Explosion-proof certified
- Range: 0mbar~350mbar…35bar
- Overpressure positive pressure: ≤2 times FS, negative pressure is notallowed
- Maximum Static Pressure: ≤200bar
- Pressure Type: differential pressure
- Accuracy: ±0.5%FS
- Application Temperature: -30? ~ 80?
- Output Signal: 4mA~20mA DC, 0mA~10/20mA DC, 0/1V~5V DC, 0V~10V DC
- Power Supply: 15V~28V DC
